Backbone Cables

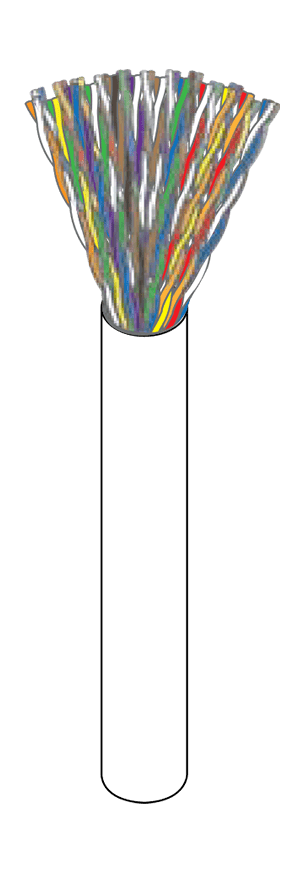

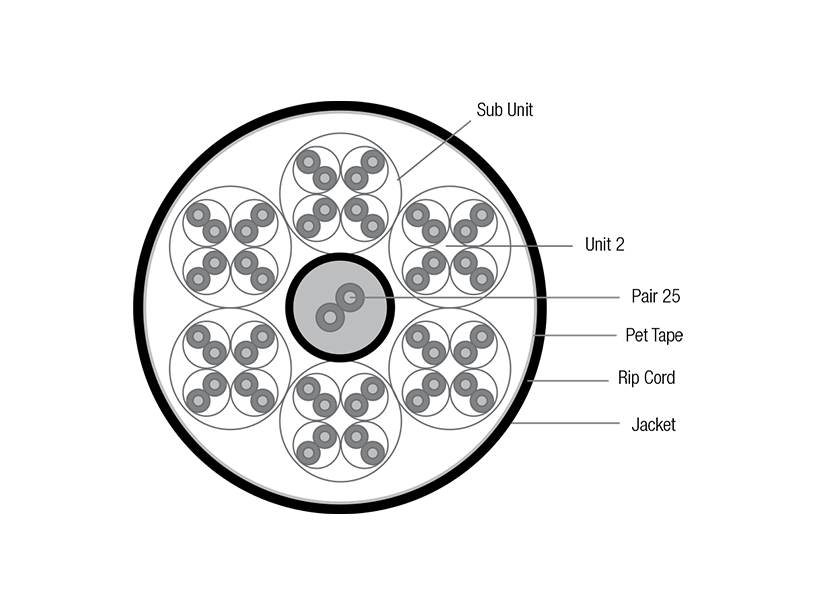

Imatek Category 5E 25-pair cable consists of 50 solid copper conductors with 24AWG. These Cat 5E 25-Pair cables meet TIA/EIA 568-B.2 Enhanced Category 5e performance requirements. For use with such backbone cabling applications as 10 and 100 BASE-T, token ring, ISDN, analog and digital voice(VoIP) connections.
| TECHNICAL DETAILS |
| Pairs | 25 |
| WG | 24 |
| Conductor Dia. Nom. (mm) | 0.50mm |
| Material | Solid Bare Copper |
| Average | Thickness (mm) 0.20mm |
| Insulation Diameter (mm) | 0.90mm |
| Jacket | PVC |
| Conductor D.C Resistance | <9.5Ω/100m |
| Insulation Resistance | 500MΩ |
| Capacitance | 5.6nF/100m |
| ELECTRICAL CHARACTERISTICS |
| Frequency (MHz) | RL (dB) | SRL (dB) | ATTEN (dB/100m) | NEXT (dB/100m) | PSNEXT (dB/100m) | ELFEXT (dB/100m) | PSELFEXT (dB/100m) | Delay (ns/100m) |
| 1 | 17.0 | 23.0 | 2.0 | 62.3 | 62.3 | 61.0 | 61.0 | 45.0 |
| 4 | 18.8 | 23.0 | 4.0 | 53.3 | 53.3 | 49.0 | 49.0 | 45.0 |
| 8 | 19.7 | 23.0 | 5.7 | 48.8 | 48.8 | 42.9 | 42.9 | 45.0 |
| 10 | 20.0 | 23.0 | 6.4 | 47.3 | 47.3 | 41.0 | 41.0 | 45.0 |
| 16 | 20.0 | 23.0 | 8.2 | 44.2 | 44.2 | 36.9 | 36.9 | 45.0 |
| 20 | 20.0 | 23.0 | 9.2 | 42.8 | 42.8 | 35.0 | 35.0 | 45.0 |
| 25 | 19.3 | 22.0 | 10.3 | 41.3 | 41.3 | 33.0 | 33.0 | 45.0 |
| 31.25 | 18.6 | 21.1 | 11.6 | 39.9 | 39.9 | 31.1 | 31.1 | 45.0 |
| 62.5 | 16.5 | 18.1 | 16.8 | 35.4 | 35.4 | 25.1 | 25.1 | 45.0 |
| 100 | 15.1 | 16.0 | 21.7 | 32.3 | 32.3 | 21.0 | 21.0 | 45.0 |
| Part Number | Product Description |
|---|---|
| 8000 5603 | IMATEK Category 5E, 25-Pair, CMR Rated, 305m, Grey |
| 8000 5604 | IMATEK Category 5E, 25-Pair, CMR Rated, 500m, Grey |
| 8000 5605 | IMATEK Category 5E, 25-Pair, LSZH, 305m, Grey |
| 8000 5606 | IMATEK Category 5E, 25-Pair, LSZH, 500m, Grey |
Imatek Category 3 multipair cable consists of solid copper conductors with 24AWG. It is generally used in voice application systems where the bandwidth is up to 16MHz. Imatek Category 3 multipair cable exceeds the requirements of TIA/EIA 568-B.2 and ISO/IEC 11801.
| TECHNICAL DETAILS |
| Pairs | 25, 50, 100 |
| AWG | 24 |
| Conductor Dia. Nom. (mm) | 0.50mm |
| Material | Solid Bare Copper |
| Average Thickness (mm) | 0.20mm |
| Jacket | PVC |
| Conductor D.C Resistance | <9.5Ω/100m |
| Insulation Resistance | 500MΩ |
| Capacitance | 5.6nF/100m |
| Attenuation | 7.8dB/M @ 1MHz |
| Impedance | 100Ω @ 1MHz |
| D.C Resistance | 27.0Ω/M |
| Part Number | Product Description |
|---|---|
| 8000 5407 | IMATEK Category 3, 25-Pair, CMR Rated, 305m, Grey |
| 8000 5408 | IMATEK Category 3, 50-Pair, CMR Rated, 305m, Grey |
| 8000 5409 | IMATEK Category 3, 100-Pair, CMR Rated, 305m, Grey |
| 8000 5410 | IMATEK Category 3, 25-Pair, CMR Rated, 500m, Grey |
| 8000 5411 | IMATEK Category 3, 50-Pair, CMR Rated, 500m, Grey |
| 8000 5412 | IMATEK Category 3, 100-Pair, CMR Rated, 500m, Grey |
| 8000 5413 | IMATEK Category 3, 25-Pair, LSZH, 305m, Grey |
| 8000 5414 | IMATEK Category 3, 50-Pair, LSZH, 305m, Grey |
| 8000 5415 | IMATEK Category 3, 100-Pair, LSZH, 305m, Grey |
| 8000 5416 | IMATEK Category 3, 25-Pair, LSZH, 500m, Grey |
| 8000 5417 | IMATEK Category 3, 50-Pair, LSZH, 500m, Grey |
| 8000 5418 | IMATEK Category 3, 100-Pair, LSZH, 500m, Grey |
