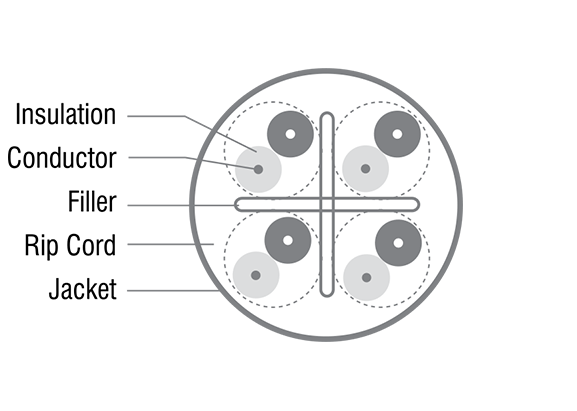

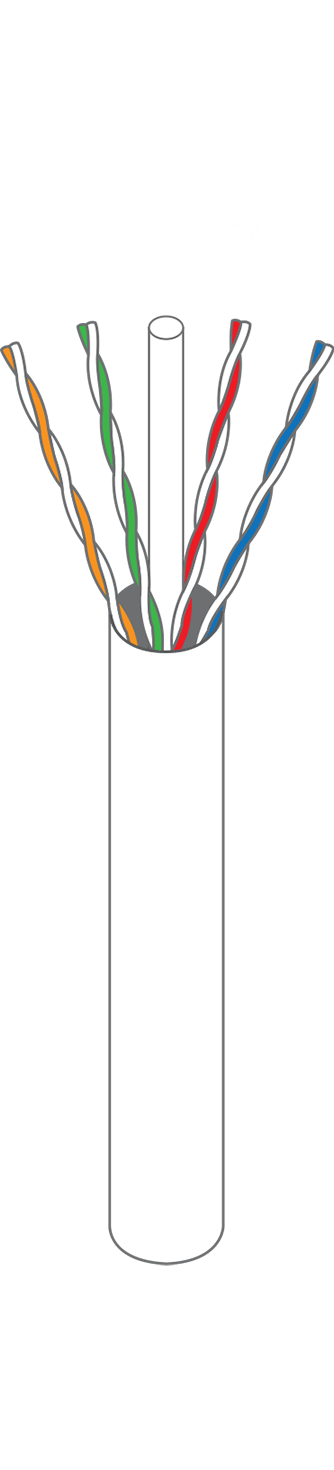

Imatek Category 6 cable consists of 4 pairs of solid insulated copper 23AWG. It is designed for use in horizontal cabling situations in 305m (1,000ft) easy pull out boxes.

The Category 6 cables provides a significant margin (10dB) above the minimum Category 6 Near End Crosstalk NEXT requirement of TIA/EIA 568-B.2-1 and ISO/IEC 11801.

The availability of a central filler helps in delivering superior cross-talk isolation and therefore ensures excellent performance.
This precision and unique manufacturing process design allows for easy removal,which maximizes both performance and termination.

TECHNICAL DETAILS
ConductorSolid Bare Copper
AWG23
Conductor Dia. Nom. (mm)0.57
InsulationPE
Average Thickness (mm)0.22
Min. Point Thickness (mm)0.18
Insulation Diameter (+/- 0.10mm)0.95
Twisting Lay Length (mm)30 underneath
Cabling Lay Length (mm)200 underneath
FillerPE
JacketPVC
Average Thickness (+/-0.05mm)0.50
Min. Point Thickness (mm)0.43
Outer Diameter (+/-0.2mm)6.00
Rip CordYes
TRANSMISSION PERFORMANCE
Frequency(MHZ)Return Loss(dB)Attenuation(dB/100mm)NEXTACR(dB)PSNEXT(dB)ELFEXT(dB)PSELFEXT(dB)Delay(dB)
120.02.074.37272.367.864.8570.0
423.03.865.36163.355.852.8552.0
824.55.360.85558.849.746.7546.7
1025.06.059.35357.347.844.8545.4
1625.07.656.24954.243.740.7543.0
2025.08.554.84652.841.838.8542.0
2524.39.553.34451.339.836.8541.2
31.2523.610.751.94149.937.934.9540.4
62.521.515.447.43245.431.928.9538.6
10020.119.844.32542.327.824.8537.6
15018.924.741.716.939.724.321.3536.9
20018.029.039.810.837.821.818.8536.5
25017.332.838.35.536.319.816.8536.3
Part NumberProduct Description
8000 5205IMATEK Category 6, 4-Pair, UTP, PVC, CMR Rated, 305m, Solid, Blue
8000 5206IMATEK Category 6, 4-Pair, UTP, PVC, CMR Rated, 305m, Stranded, Blue
8000 5207IMATEK Category 6, 4-Pair, UTP, PVC, LSZH, 305m, Solid, Blue
8000 5208IMATEK Category 6, 4-Pair, UTP, PVC, LSZH, 305m, Stranded, Blue

Imatek Category 6 FTP cable consists of 4 pairs insulated copper with 23AWG and is being screened in aluminium foil. It meets or exceeds the
channel specifications of TIA/EIA-568-B Category 6 and ISO/IEC 11801.
This product is CMR rated.

Imatek Category 6 FTP cables support the Gigabit Ethernet, Fast
Ethernet, ISDN, analog and video signal, and VOIP.

TECHNICAL DETAILS
ConductorSolid Bare Copper
AWG23
Conductor Dia. Nom. (mm)0.58
InsulationPE
Average Thickness (mm)0.22
Insulation Diameter (mm)0.10
FillerFEP
JacketPVC
Mutual Capacitance5.6nF/100m nominal
Characteristic Impedance100Ω
Voltage300 VRMS
TRANSMISSION PERFORMANCE
Frequency (MHz)Insertion Loss (dB)Next (dB)PSNEXT (dB)ACRF (dB)PSACRF (dB)Return Loss (dB)Prop Delay (ns/100m)Prop Delay (ns)
12.365.062.063.360.319.0580.050.0
44.263.060.551.248.219.0562.050.0
85.858.255.645.242.219.0556.750.0
106.556.654.043.340.319.0555.450.0
168.253.250.639.236.218.0553.050.0
209.251.649.037.234.217.5552.050.0
2510.250.047.335.332.317.0551.250.0
31.2511.548.445.733.430.416.5550.450.0
62.516.443.440.627.324.314.0548.650.0
10020.939.937.123.320.312.0547.650.0
20030.134.831.917.214.29.0546.550.0
25033.931.130.215.312.38.0546.350.0
Part NumberProduct Description
8000 5305IMATEK Category 6, 4-Pair, FTP, PVC, CMR Rated, 305m, Solid, Blue
8000 5306IMATEK Category 6, 4-Pair, FTP, PVC, CMR Rated, 305m, Stranded, Blue
8000 5307IMATEK Category 6, 4-Pair, FTP, PVC, LSZH, 305m, Solid, Blue
8000 5308IMATEK Category 6, 4-Pair, FTP, PVC, LSZH, 305m, Stranded, Blue
Imatek Category 6 UTP patch cords are factory terminated, providing the quality required to support your network’s channel requirements. These patch cords are booted and come with clip protection on both ends.
Imatek Category 6 UTP patch cord offers a high performance and is designed to operate up to 300MHz, and comes with the ability of backward compatible with Category 5 or Category 5E products.

MECHANICAL CHARACTERISTICS
Connectors
Gauge 23AWG
Pair Count 4 Pair individually colour coded
Sequence Wiring Sequence 568A/B
Durability 750 mating cycles Min
RJ45 Plug Polycarbonate, UL 94V-2
Plug Boot PVC
Contact Material BRASS,GOLD PLATED 3u
ELECTRICAL CHARACTERISTICS
Dielectric Strength 750V RMS at 60Hz for 1 minute
Voltage Rating 150VAC
Current Rating <1.75A
Insulation 500MΩ
Contact Resistance Dry circuit of DC 20mV max,100mA max
Loss 0.5dB per mated connector
Return Loss Maximun -45dB
Part Number Product Description
8001 5026 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 1m, Blue
8001 5026-1 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 1m, Grey
8001 5026-2 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 1m, Black
8001 5026-3 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 1m, Red
8001 5026-4 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 1m, Yellow
8001 5026-5 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 1m, Green
8001 5026-6 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 1m, Orange
8001 5026-7 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 1m, Purple
8001 5027 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 2m, Blue
8001 5027-1 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 2m, Grey
8001 5027-2 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 2m, Black
8001 5027-3 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 2m, Red
8001 5027-4 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 2m, Yellow
8001 5027-5 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 2m, Green
8001 5027-6 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 2m, Orange
8001 5027-7 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 2m, Purple
Part Number Product Description
8001 5028 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 3m, Blue
8001 5028-1 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 3m, Grey
8001 5028-2 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 3m, Black
8001 5028-3 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 3m, Red
8001 5028-4 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 3m, Yellow
8001 5028-5 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 3m, Green
8001 5028-6 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 3m, Orange
8001 5028-7 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 3m, Purple
8001 5029 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 5m, Blue
8001 5029-1 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 5m, Grey
8001 5029-2 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 5m, Black
8001 5029-3 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 5m, Red
8001 5029-4 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 5m, Yellow
8001 5029-5 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 5m, Green
8001 5029-6 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 5m, Orange
8001 5029-7 IMATEK Category 6 UTP PVC Patch Cord CMR Rated 5m, Purple
Imatek Category 6 FTP patch cords are factory terminated, providing the quality required to support your FTP network environments. These patch cords are booted and come with clip protection on both ends.
Imatek Category 6 FTP patch cord offers a high performance and is designed to operate up to 300MHz, and comes with the ability of backward compatible with Category 5 or Category 5E products.
MECHANICAL CHARACTERISTICS
Connectors
Gauge 23AWG
Pair Count 4 Pair individually colour coded
Sequence Wiring Sequence 568A/B
Durability 750 mating cycles Min
RJ45 Plug Polycarbonate, UL 94V-2
Plug Boot PVC
Contact Material BRASS,GOLD PLATED 3u
ELECTRICAL CHARACTERISTICS
Dielectric Strength 750V RMS at 60Hz for 1 minute
Voltage Rating 150VAC
Current Rating <1.75A
Insulation 500MΩ
Contact Resistance Dry circuit of DC 20mV max,100mA max
Loss 0.5dB per mated connector
Return Loss Maximun -45dB
Part Number Product Description
8001 5036 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 1m, Blue
8001 5036-1 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 1m, Grey
8001 5036-2 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 1m, Black
8001 5036-3 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 1m, Red
8001 5036-4 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 1m, Yellow
8001 5036-5 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 1m, Green
8001 5036-6 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 1m, Orange
8001 5036-7 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 1m, Purple
8001 5037 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 2m, Blue
8001 5037-1 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 2m, Grey
8001 5037-2 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 2m, Black
8001 5037-3 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 2m, Red
8001 5037-4 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 2m, Yellow
8001 5037-5 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 2m, Green
8001 5037-6 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 2m, Orange
8001 5037-7 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 2m, Purple
Part Number Product Description
8001 5038 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 3m, Blue
8001 5038-1 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 3m, Grey
8001 5038-2 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 3m, Black
8001 5038-3 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 3m, Red
8001 5038-4 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 3m, Yellow
8001 5038-5 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 3m, Green
8001 5038-6 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 3m, Orange
8001 5038-7 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 3m, Purple
8001 5039 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 5m, Blue
8001 5039-1 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 5m, Grey
8001 5039-2 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 5m, Black
8001 5039-3 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 5m, Red
8001 5039-4 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 5m, Yellow
8001 5039-5 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 5m, Green
8001 5039-6 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 5m, Orange
8001 5039-7 IMATEK Category 6 FTP PVC Patch Cord CMR Rated 5m, Purple

Imatek Category 6 modular jack performs beyond Category 6 standards. The modular jack is individually terminated using Insulation Displacement Connector (IDC) giving assurance of wire connection when using a punch down tool.
Imatek Category 6 modular jack comes with the ability of backward compatible with Category 5 or Category 5E performance and fully complies to EIA/TIA 568-B.2.

MECHANICAL CHARACTERISTICS
Modular Connector RJ45
RJ45 8-Pin Connector gold plated
Durability 750 mating cycles Min
IDC Connector Phosphor bronze plated with 50 micro-inches of gold plating
Insulation Diameter (Wire) 22AWG—26AWG
Connector Material Phosphor bronze
ELECTRICAL CHARACTERISTICS
Dielectric Strength 750V RMS at 60Hz for 1 minute
Current Rating 1.5Amp
Insulation Resistance >100MΩ at 500 Vdc
Contact Resistance <1.0MΩ
Transmission Performance ISO/IEC11801, TIA/EIA-568-B
Temperature Range -30°C ~ 60°C
Part Number Product Description
8150 0004 IMATEK Category 6 Data Modular Jack, 180 Degree Keystone Type,White
8150 0004-1 IMATEK Category 6 Data Modular Jack, 180 Degree Keystone Type, Yellow
8150 0004-2 IMATEK Category 6 Data Modular Jack, 180 Degree Keystone Type, Blue
8150 0004-3 IMATEK Category 6 Data Modular Jack, 180 Degree Keystone Type, Red
8150 0004-4 IMATEK Category 6 Data Modular Jack, 180 Degree Keystone Type, Black
Imatek Category 6 FTP modular jack provides excellent shielding against electro-magnetic interference, and superior performance for data networking. It enhanced the crosstalk and return loss by rejecting noise and unwanted signals.
Imatek Category 6 FTP modular jack comes with the ability of backward compatible with Category 5 or Category 5E performance and fully complies to EIA/TIA 568-B.2.
MECHANICAL CHARACTERISTICS
Housing Zinc Alloy plated with Ni/Cu
Modular Connector RJ45
Durability 750 mating cycles Min
Insulation Diameter (Wire) 22AWG—26AWG
Connector Material Copper Alloy
ELECTRICAL CHARACTERISTICS
Interface Resistance 20mΩ
Current Rating 1.5Amp
Insulation Resistance >100mΩ at 500 Vdc
Contact Resistance <2.5mΩ
Transmission Performance ISO/IEC11801, TIA/EIA-568-B
Temperature Range -30°C ~ 60°C
Part Number Product Description
8150 0005 IMATEK Category 6 FTP Data Modular Jack, 180 Degree Keystone Type
Imatek Category 6 patch panel features 24 individual keystone modular jacks for easier maintenance and better performance. Designed for mounting on standard 19-inch racks. Velco cable ties, cage nuts and screws are also provided with the panel. These high quality and reliable patch panels give a superior choice for high performance networks.
MECHANICAL CHARACTERISTICS
Modular Connector RJ45
RJ45 8-Pin Connector gold plated
Durability 750 mating cycles Min
IDC Connector Phosphor bronze plated with 50 micro-inches of gold plating
Insulation Diameter (Wire) 22AWG—26AWG
Connector Material Phosphor bronze
ELECTRICAL CHARACTERISTICS
Dielectric Strength 750V RMS at 60Hz for 1 minute
Current Rating 1.5Amp
Insulation Resistance >100MΩ at 500 Vdc
Contact Resistance <1.0MΩ
Transmission Performance ISO/IEC11801, TIA/EIA-568-B
Temperature Range -30°C ~ 60°C
Part Number Product Description
8140 0003 IMATEK Category 6 24-Port Patch Panel
Imatek Category 6 FTP patch panel provides exceptional performance for high speed LAN network. The shielded design delivers better insertion loss, return loss, cross talk and maximize the signal strength.This patch panel works perfectly with other Imatek FTP products to give you a superior network performance.
FEATURES

- Shielding provides both EMI/RFI protection and data security

- Panel features a stainless steel plate to provide grounding continuity between connectors and panel

- Support 22-26AWG stranded or solid wire

- Ideal for Ethernet, Fast Ethernet or Gigabit Ethernet network applications

Panel MaterialStainless steel metal
Transmission PerformanceTIA/EIA-568-B
Operating Temperature-30°C ~ 60°C℃
Modular ConnectorRJ45
RJ45 8-Pin Connectorgold plated
Durability750 mating cycles Min
IDC ConnectorPhosphor bronze plated with 0 micro-inches of gold plating
Connector MaterialPhosphor bronze
Part NumberProduct Description
8140 0004IMATEK Category 6 24-Port FTP Patch Panel
