Category 5E Solution

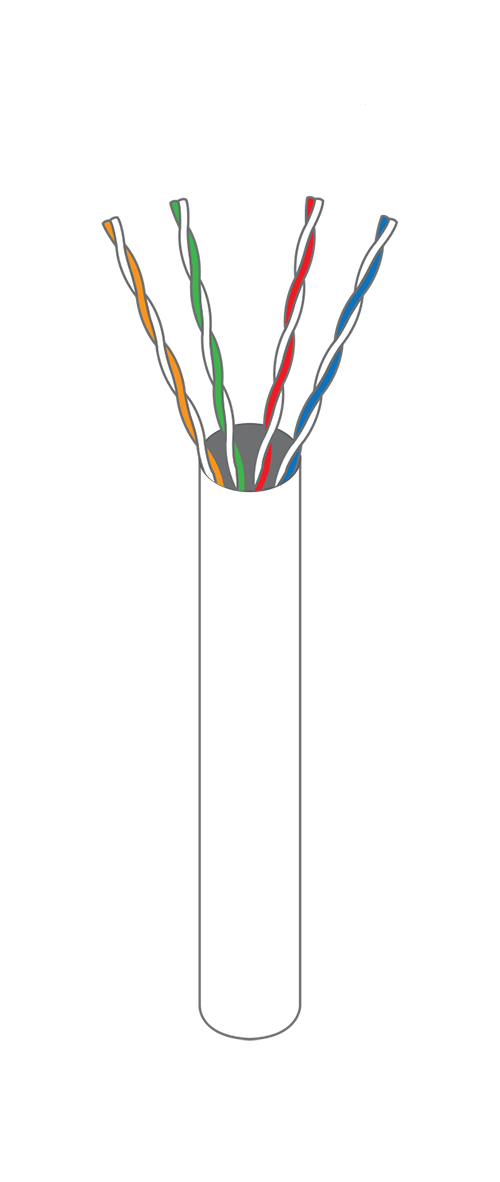

Imatek Category 5E 4-Pair Cable consists of 24AWG solid-copper conductors insulated with high-density polyethylene. The insulated conductors are tightly twisted into pairs and covered with PVC material.

Imatek Category 5E 4-Pair Cable provides excellent high-speed transmission, is certified to 155MHz and supports application such as 155Mb/s ATM, 622Mb/s ATM and IEEE 802.3 1000 Base-T (Gigabit Ethernet) standard, using parallel transmission technology. This product is UL listed with a CMR fire rating.

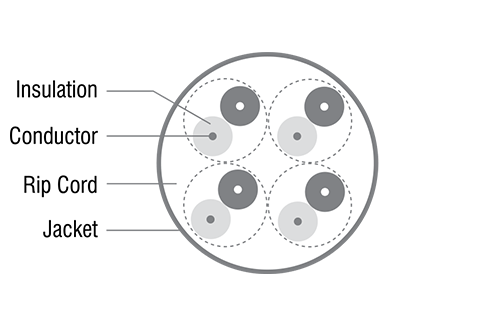

CONSTRUCTION
ConductorSolid Bare Copper
AWG24
Conductor Dia. Nom. (mm)0.505
InsulationPE
Average Thickness (mm)0.19
Min. Point Thickness (mm)0.16
Insulation Diameter (+/-0.10mm)0.88
Twisting Lay Length (mm)30 underneath
Cabling Lay Length (mm)200 underneath
JacketPVC
Average Thickness (+/-0.05mm)0.50
Min. Point Thickness (mm)0.43
Outer Diameter (+/-0.2mm)4.9
Rip CordYes

TRANSMISSION PERFORMANCE
Frequency(MHZ)Return Loss(dB)Attenuation(dB/100mm)NEXTACR(dB)PSNEXT(dB)ELFEXT(dB)PSELFEXT(dB)Delay(dB)
0.77219.41.867.06564.066.063.0575.0
120.02.065.36362.363.860.8570.0
423.04.156.35253.351.748.7552.0
824.55.851.84648.845.742.7546.7
1025.06.550.34447.343.8;40.8545.4
1625.08.247.33944.339.736.7543.0
2025.09.345.83742.837.734.7542.0
2524.310.444.33441.335.832.8541.2
31.2523.611.742.93139.933.930.9540.4
62.521.517.038.42135.427.824.8538.6
10020.122.035.31332.323.820.8537.6
Part NumberProduct Description
8000 5005IMATEK Category 5E, 4-Pair, UTP, PVC, CMR Rated, 305m, Solid, Grey
8000 5006IMATEK Category 5E, 4-Pair, UTP, PVC, CMR Rated, 305m, Stranded, Grey
8000 5007IMATEK Category 5E, 4-Pair, UTP, PVC, LSZH, 305m, Solid, Grey
8000 5008IMATEK Category 5E, 4-Pair, UTP, PVC, LSZH, 305m, Stranded, Grey

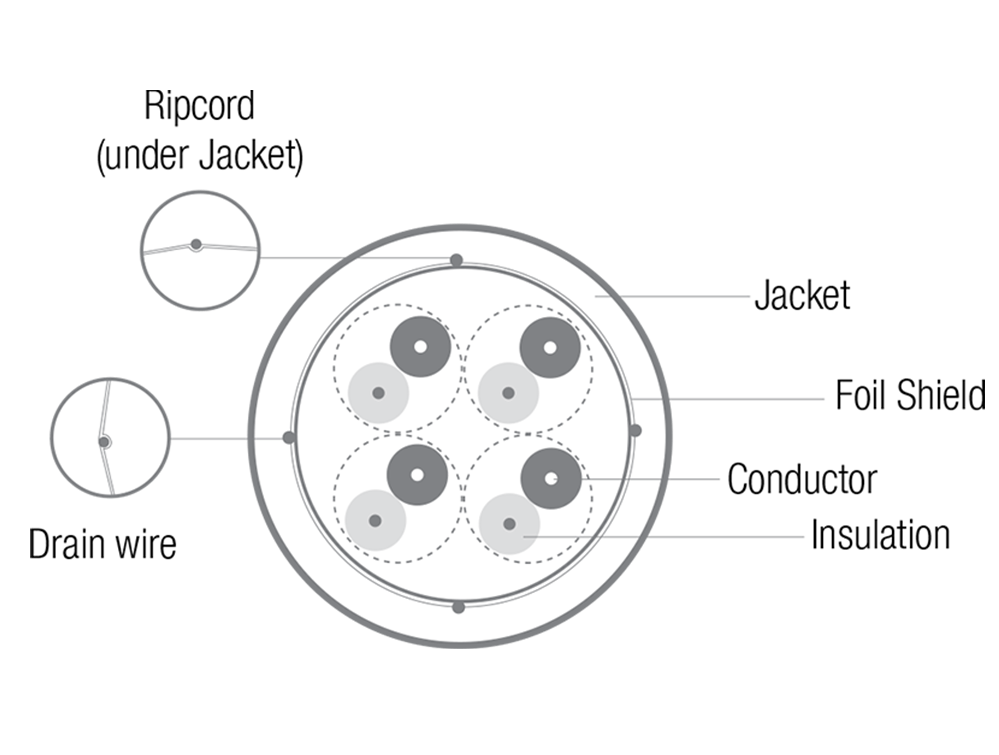

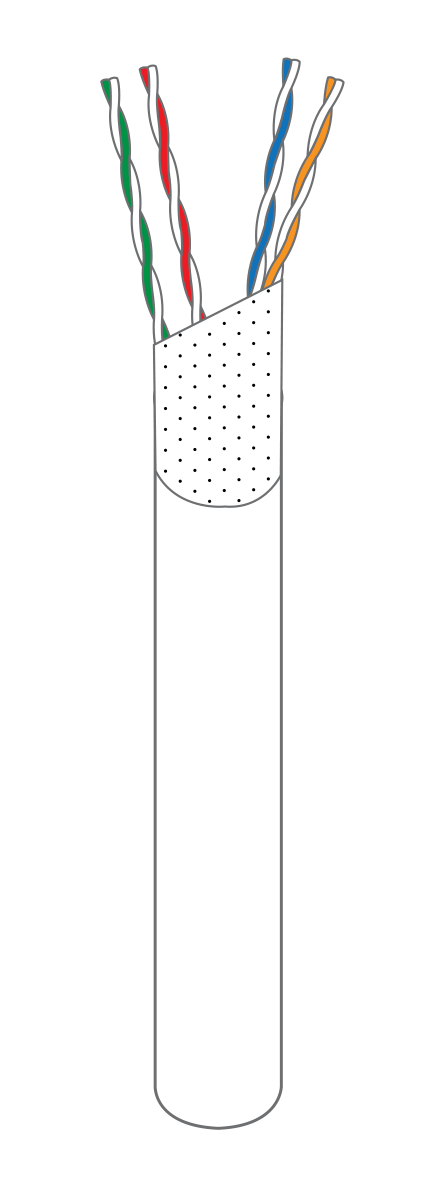

Imatek Category 5e FTP cable consists of 4 pairs insulated copper with
24AWG and is being screened in aluminium foil. It meets or exceeds
the channel specifications of TIA/EIA-568-B.2 Category 5e and ISO/IEC
11801. This product is CMR rated.

Imatek Category 5e FTP cables support the Gigabit Ethernet, Fast
Ethernet, ISDN, analog and video signal, and VOIP.

TECHNICAL DETAILS
ConductorSolid Bare Copper
AWG24
Conductor Dia. Nom. (mm)0.51
InsulationPE
Average Thickness (mm)0.22
Insulation Diameter (mm)0.10
JacketPVC
Mutual Capacitance5.6nF/100m nominal
Characteristic Impedance100Ω
Voltage300 VRMS
TRANSMISSION PERFORMANCE

Performance Characteristics (meet or exceed)

Frequency (MHz)Insertion Loss (dB/100m)Next (dB)PSNEXT (dB)ELFEXT (dB)PSELFEXT (dB)Return Loss (dB)
12.065.362.363.860.820.0
44.156.353.351.848.823.0
85.851.848.845.742.724.5
106.550.347.343.840.825.0
168.247.244.239.736.725.0
209.345.842.837.834.825.0
2510.444.341.335.832.824.3
31.2511.742.939.933.930.923.6
62.517.038.435.429.724.921.5
10022.035.332.323.820.820.1
Part NumberProduct Description
8000 5105IMATEK Category 5E, 4-Pair, FTP, PVC, CMR Rated, 305m, Solid, Grey
8000 5106IMATEK Category 5E, 4-Pair, FTP, PVC, CMR Rated, 305m, Stranded, Grey
8000 5107IMATEK Category 5E, 4-Pair, FTP, PVC, LSZH, 305m, Solid, Grey
8000 5108IMATEK Category 5E, 4-Pair, FTP, PVC, LSZH, 305m, Stranded, Grey

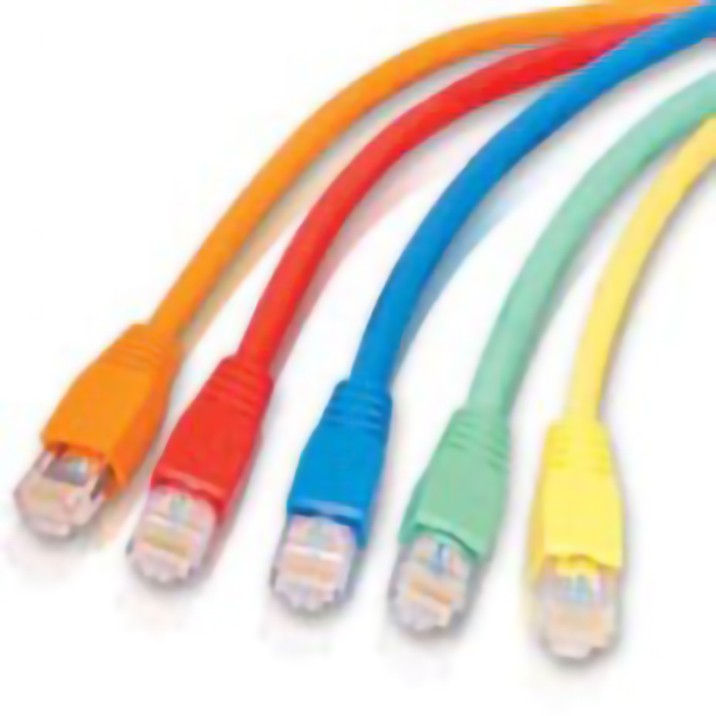

Imatek Category 5E UTP patch cords are factory terminated, providing the quality required to support your network’s channel requirements.

These patch cords are booted and come with clip protection on both ends. These patch cords are available with different colours and lengths to assist with better cable management.

MECHANICAL CHARACTERISTICS
Connectors
Gauge24AWG
Pair Count4 Pair individually colour coded
SequenceWiring Sequence 568A/B
Durability750 mating cycles Min
RJ45 PlugPolycarbonate, UL 94V-2
Plug BootPVC
Contact MaterialBRASS,GOLD PLATED 3u
ELECTRICAL CHARACTERISTICS
Dielectric Strength750V RMS at 60Hz for 1 minute
Voltage Rating150VAC
Current Rating<1.75A
Insulation500MΩ
Contact ResistanceDry circuit of DC 20mV max,100mA max
Loss0.5dB per mated connector
Return Loss Maximun-45dB
Part NumberProduct Description
8001 5006IMATEK Category 5E UTP PVC Patch Cord CMR Rated 1m, Grey
8001 5006-1IMATEK Category 5E UTP PVC Patch Cord CMR Rated 1m, Blue
8001 5006-2IMATEK Category 5E UTP PVC Patch Cord CMR Rated 1m, Black
8001 5006-3IMATEK Category 5E UTP PVC Patch Cord CMR Rated 1m, Red
8001 5006-4IMATEK Category 5E UTP PVC Patch Cord CMR Rated 1m, Yellow
8001 5006-5IMATEK Category 5E UTP PVC Patch Cord CMR Rated 1m, Green
8001 5006-6IMATEK Category 5E UTP PVC Patch Cord CMR Rated 1m, Orange
8001 5006-7IMATEK Category 5E UTP PVC Patch Cord CMR Rated 1m, Purple

8001 5007IMATEK Category 5E UTP PVC Patch Cord CMR Rated 2m, Grey
8001 5007-1IMATEK Category 5E UTP PVC Patch Cord CMR Rated 2m, Blue
8001 5007-2IMATEK Category 5E UTP PVC Patch Cord CMR Rated 2m, Black
8001 5007-3IMATEK Category 5E UTP PVC Patch Cord CMR Rated 2m, Red
8001 5007-4IMATEK Category 5E UTP PVC Patch Cord CMR Rated 2m, Yellow
8001 5007-5IMATEK Category 5E UTP PVC Patch Cord CMR Rated 2m, Green
8001 5007-6IMATEK Category 5E UTP PVC Patch Cord CMR Rated 2m, Orange
8001 5007-7IMATEK Category 5E UTP PVC Patch Cord CMR Rated 2m, Purple
Part NumberProduct Description
8001 5008IMATEK Category 5E UTP PVC Patch Cord CMR Rated 3m, Grey
8001 5008-1IMATEK Category 5E UTP PVC Patch Cord CMR Rated 3m, Blue
8001 5008-2IMATEK Category 5E UTP PVC Patch Cord CMR Rated 3m, Black
8001 5008-3IMATEK Category 5E UTP PVC Patch Cord CMR Rated 3m, Red
8001 5008-4IMATEK Category 5E UTP PVC Patch Cord CMR Rated 3m, Yellow
8001 5008-5IMATEK Category 5E UTP PVC Patch Cord CMR Rated 3m, Green
8001 5008-6IMATEK Category 5E UTP PVC Patch Cord CMR Rated 3m, Orange
8001 5008-7IMATEK Category 5E UTP PVC Patch Cord CMR Rated 3m, Purple

8001 5009IMATEK Category 5E UTP PVC Patch Cord CMR Rated 5m, Grey
8001 5009-1IMATEK Category 5E UTP PVC Patch Cord CMR Rated 5m, Blue
8001 5009-2IMATEK Category 5E UTP PVC Patch Cord CMR Rated 5m, Black
8001 5009-3IMATEK Category 5E UTP PVC Patch Cord CMR Rated 5m, Red
8001 5009-4IMATEK Category 5E UTP PVC Patch Cord CMR Rated 5m, Yellow
8001 5009-5IMATEK Category 5E UTP PVC Patch Cord CMR Rated 5m, Green
8001 5009-6IMATEK Category 5E UTP PVC Patch Cord CMR Rated 5m, Orange
8001 5009-7IMATEK Category 5E UTP PVC Patch Cord CMR Rated 5m, Purple

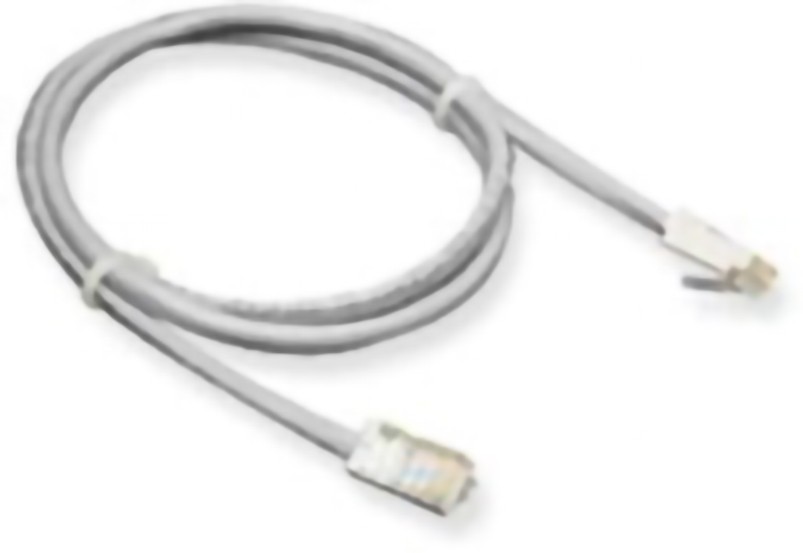

Imatek Category 5E UTP patch cords are factory terminated, providing the quality required to support your FTP network environments. These patch cords are booted and come with clip protection on both ends. These patch cords are available with different colours and lengths to assist with better cable management.

MECHANICAL CHARACTERISTICS
Connectors
Gauge24AWG
Pair Count4 Pair individually colour coded
SequenceWiring Sequence 568A/B
Durability750 mating cycles Min
RJ45 PlugPolycarbonate, UL 94V-2
Plug BootPVC
Contact MaterialBRASS,GOLD PLATED 3u
ELECTRICAL CHARACTERISTICS
Dielectric Strength750V RMS at 60Hz for 1 minute
Voltage Rating150VAC
Current Rating<1.75A
Insulation500MΩ
Contact ResistanceDry circuit of DC 20mV max,100mA max
Loss0.5dB per mated connector
Return Loss Maximun-45dB
Part NumberProduct Description
8001 5016IMATEK Category 5E FTP PVC Patch Cord CMR Rated 1m, Grey
8001 5016-1IMATEK Category 5E FTP PVC Patch Cord CMR Rated 1m, Blue
8001 5016-2IMATEK Category 5E FTP PVC Patch Cord CMR Rated 1m, Black
8001 5016-3IMATEK Category 5E FTP PVC Patch Cord CMR Rated 1m, Red
8001 5016-4IMATEK Category 5E FTP PVC Patch Cord CMR Rated 1m, Yellow
8001 5016-5IMATEK Category 5E FTP PVC Patch Cord CMR Rated 1m, Green
8001 5016-6IMATEK Category 5E FTP PVC Patch Cord CMR Rated 1m, Orange
8001 5016-7IMATEK Category 5E FTP PVC Patch Cord CMR Rated 1m, Purple

8001 5017IMATEK Category 5E FTP PVC Patch Cord CMR Rated 2m, Grey
8001 5017-1IMATEK Category 5E FTP PVC Patch Cord CMR Rated 2m, Blue
8001 5017-2IMATEK Category 5E FTP PVC Patch Cord CMR Rated 2m, Black
8001 5017-3IMATEK Category 5E FTP PVC Patch Cord CMR Rated 2m, Red
8001 5017-4IMATEK Category 5E FTP PVC Patch Cord CMR Rated 2m, Yellow
8001 5017-5IMATEK Category 5E FTP PVC Patch Cord CMR Rated 2m, Green
8001 5017-6IMATEK Category 5E FTP PVC Patch Cord CMR Rated 2m, Orange
8001 5017-7IMATEK Category 5E FTP PVC Patch Cord CMR Rated 2m, Purple
Part NumberProduct Description
8001 5018IMATEK Category 5E FTP PVC Patch Cord CMR Rated 3m, Grey
8001 5018-1IMATEK Category 5E FTP PVC Patch Cord CMR Rated 3m, Blue
8001 5018-2IMATEK Category 5E FTP PVC Patch Cord CMR Rated 3m, Black
8001 5018-3IMATEK Category 5E FTP PVC Patch Cord CMR Rated 3m, Red
8001 5018-4IMATEK Category 5E FTP PVC Patch Cord CMR Rated 3m, Yellow
8001 5018-5IMATEK Category 5E FTP PVC Patch Cord CMR Rated 3m, Green
8001 5018-6IMATEK Category 5E FTP PVC Patch Cord CMR Rated 3m, Orange
8001 5018-7IMATEK Category 5E FTP PVC Patch Cord CMR Rated 3m, Purple

8001 5019IMATEK Category 5E FTP PVC Patch Cord CMR Rated 5m, Grey
8001 5019-1IMATEK Category 5E FTP PVC Patch Cord CMR Rated 5m, Blue
8001 5019-2IMATEK Category 5E FTP PVC Patch Cord CMR Rated 5m, Black
8001 5019-3IMATEK Category 5E FTP PVC Patch Cord CMR Rated 5m, Red
8001 5019-4IMATEK Category 5E FTP PVC Patch Cord CMR Rated 5m, Yellow
8001 5019-5IMATEK Category 5E FTP PVC Patch Cord CMR Rated 5m, Green
8001 5019-6IMATEK Category 5E FTP PVC Patch Cord CMR Rated 5m, Orange
8001 5019-7IMATEK Category 5E FTP PVC Patch Cord CMR Rated 5m, Purple

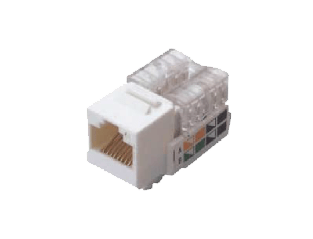

Imatek Category 5E modular jack is designed and manufactured to meet the industry standards. The modular jack is individually terminated using Insulation Displacement Connector (IDC) giving assurance of wire connection when using a punch down tool.

Imatek Category 5E modular jack comes with the ability to wire to a T568A or T568B configuration and fully complies to EIA/TIA 568-B.2.

MECHANICAL CHARACTERISTICS
Modular ConnectorRJ45
RJ45 8-Pin Connectorgold plated
Durability750 mating cycles Min
IDC ConnectorPhosphor bronze plated with 50 micro-inches of gold plating
Insulation Diameter (Wire)22AWG—26AWG
Connector MaterialPhosphor bronze
ELECTRICAL CHARACTERISTICS
Dielectric Strength750V RMS at 60Hz for 1 minute
Current Rating1.5Amp
Insulation Resistance>100MΩ at 500 Vdc
Contact Resistance<1.0MΩ
Transmission PerformanceISO/IEC11801, TIA/EIA-568-B
Temperature Range-30°C ~ 60°C

Part NumberProduct Description
8150 0002IMATEK Category 5E Data Modular Jack, Keystone Type, White
8150 0002-1IMATEK Category 5E Data Modular Jack, Keystone Type, Yellow
8150 0002-2IMATEK Category 5E Data Modular Jack, Keystone Type, Blue
8150 0002-3IMATEK Category 5E Data Modular Jack, Keystone Type, Red
8150 0002-4IMATEK Category 5E Data Modular Jack, Keystone Type, Black

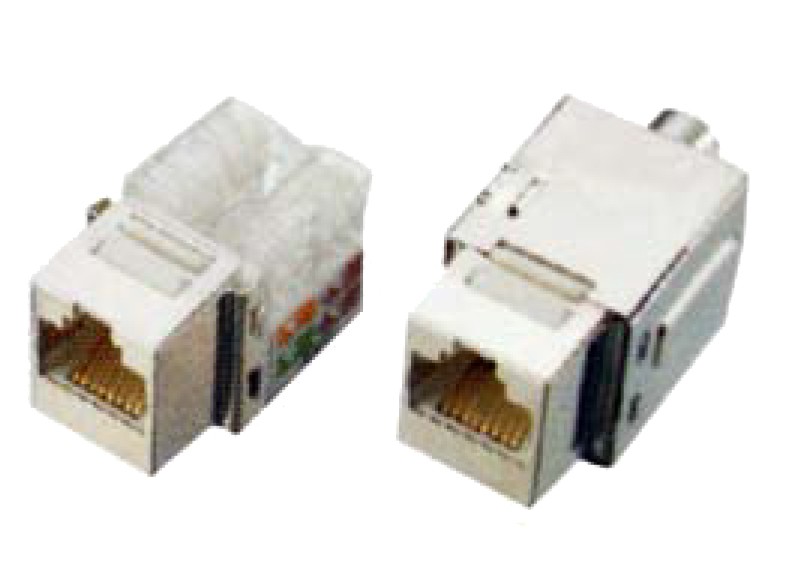

Imatek Category 5E FTP modular jack provides excellent shielding against electro-magnetic interference, and superior performance for data networking. It enhanced the crosstalk and return loss by rejecting noise and unwanted signals.

Imatek Category 5E FTP modular jack comes with the ability to wire to a T568A or T568B configuration and fully complies to EIA/TIA 568-B.2.

MECHANICAL CHARACTERISTICS
Housing Zinc Alloy plated with Ni/Cu
Modular Connector RJ45
Durability 750 mating cycles Min
Insulation Diameter (Wire) 22AWG—26AWG
Connector Material Copper Alloy
ELECTRICAL CHARACTERISTICS
Interface Resistance 20mΩ
Current Rating 1.5Amp
Insulation Resistance >100mΩ at 500 Vdc
Contact Resistance <2.5mΩ
Transmission Performance ISO/IEC11801, TIA/EIA-568-B
Temperature Range -30°C ~ 60°C
Part Number Product Description
8150 0003 IMATEK Category 5E FTP Data Modular Jack, Keystone Type

Imatek Category 5E patch panel features 24 individual keystone modular jacks for easier maintenance and better performance. Designed for mounting on standard 19-inch racks. Velco cable ties, cage nuts and screws are also provided with the panel. These high quality and reliable patch panels give a superior choice for high performance networks.

MECHANICAL CHARACTERISTICS
Modular ConnectorRJ45
RJ45 8-Pin Connectorgold plated
Durability750 mating cycles Min
IDC ConnectorPhosphor bronze plated with 50 micro-inches of gold plating
Insulation Diameter (Wire)22AWG—26AWG
Connector MaterialPhosphor bronze
ELECTRICAL CHARACTERISTICS
Dielectric Strength750V RMS at 60Hz for 1 minute
Current Rating1.5Amp
Insulation Resistance>100MΩ at 500 Vdc
Contact Resistance<1.0MΩ
Transmission PerformanceISO/IEC11801, TIA/EIA-568-B
Temperature Range-30°C ~ 60°C
Part NumberProduct Description
8140 0001IMATEK Category 5E 24-Port Patch Panel

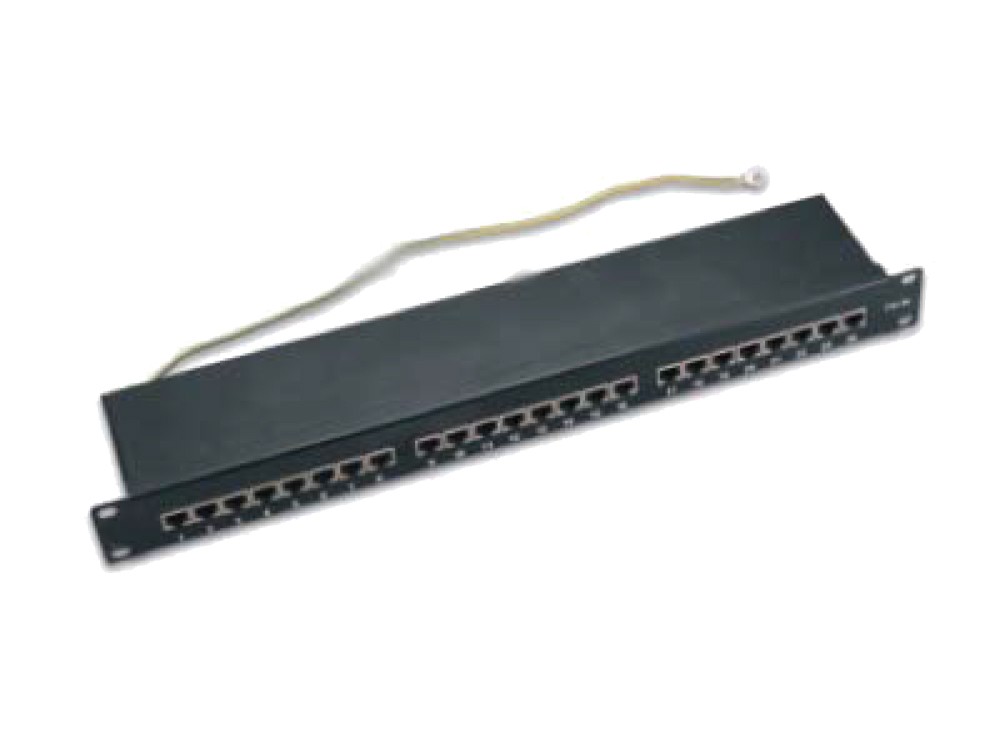

Imatek Category 5E FTP patch panel provides exceptional performance for high speed LAN network. The shielded design delivers better insertion loss, return loss, cross talk and maximize the signal strength. This patch panel works perfectly with other Imatek FTP products to give you a superior network performance.
FEATURES
- Shielding provides both EMI/RFI protection and data security - Panel features a stainless steel plate to provide grounding continuity between connectors and panel - Support 22-26AWG stranded or solid wire - Ideal for Ethernet, Fast Ethernet or Gigabit Ethernet network applications
Panel Material Stainless steel metal
Transmission Performance TIA/EIA-568-B
Operating Temperature -30°C ~ 60°C℃
Modular Connector RJ45
RJ45 8-Pin Connector gold plated
Durability 750 mating cycles Min
IDC Connector Phosphor bronze plated with 50 micro-inches of gold plating
Connector Material Phosphor bronze
Part Number Product Description
8140 0002 IMATEK Category 5E 24-Port FTP Patch Panel
