Coaxial & Control Cable
20AWG Copper Clad Steel
Nominal Diameter 0.032” (0.81mm)
Dielectric :
Gas Expanded Polyethylene
Nominal Diameter Over Dielectric : 0.144” (3.66mm)
Shield :
1st Shield : Aluminium-Polyprorylene-Aluminium
Laminated Tape with Overlap Bonded to the Dielectric
Nominal Diameter Over Tape : 0.150” (3.82mm)
2nd Shield : 34AWG Aluminium Braid Wire 90% Coverage
Jacket :
Flame Retardant PVC Jacket
Nominal Diameter Over Jacket : 0.240” (6.10mm)
Nominal Jacket Thickness : 0.032” (0.82mm)
Electrical Properties :
Impedance : 75.0 ±3.0 0hms
Velocity of Propagation :85% Norminal
Capacitance Conductor to Shield :16.2 pF/ft (53.1 pF/m) Nominal
Attenuation :
68 oF (20 oC )
| TRANSMISSION PERFORMANCE |
| Frequency MHz | dB/100 ft. (MAX) | dB/100meters (MAX) |
| 5MHz | 0.8dB | 2.5dB |
| 55MHz | 1.8dB | 6.0dB |
| 211MHz | 3.4dB | 11.0dB |
| 500MHz | 5.2dB | 17.1dB |
| 750MHz | 6.5dB | 21.4dB |
| 862MHz | 7.0dB | 22.9dB |
| 1000MHz | 7.7dB | 25.2dB |
| 1450MHz | 9.3dB | 30.5dB |
| 1800MHz | 10.3dB | 33.8dB |
| 2250MHz | 11.9dB | 39.0dB |
| Part Number | Product Description |
|---|---|
| 8000 4301 | IMATEK RG59, 2GHz, 90% Braided, CCS Grade, Coaxial Cable, 305m |
| 8000 4302 | IMATEK RG59, 2GHz, 90% Braided, CCS Grade, Coaxial Cable, 500m |
| 8000 4303 | IMATEK RG59, 2GHz, 97% Braided, CCS Grade, Coaxial Cable, 305m |
| 8000 4304 | IMATEK RG59, 2GHz, 97% Braided, CCS Grade, Coaxial Cable, 500m |
| 8000 4305 | IMATEK RG59, 2GHz, 97% Braided, Bare Copper, Coaxial Cable, 305m |
| 8000 4306 | IMATEK RG59, 2GHz, 97% Braided, Bare Copper, Coaxial Cable, 500m |

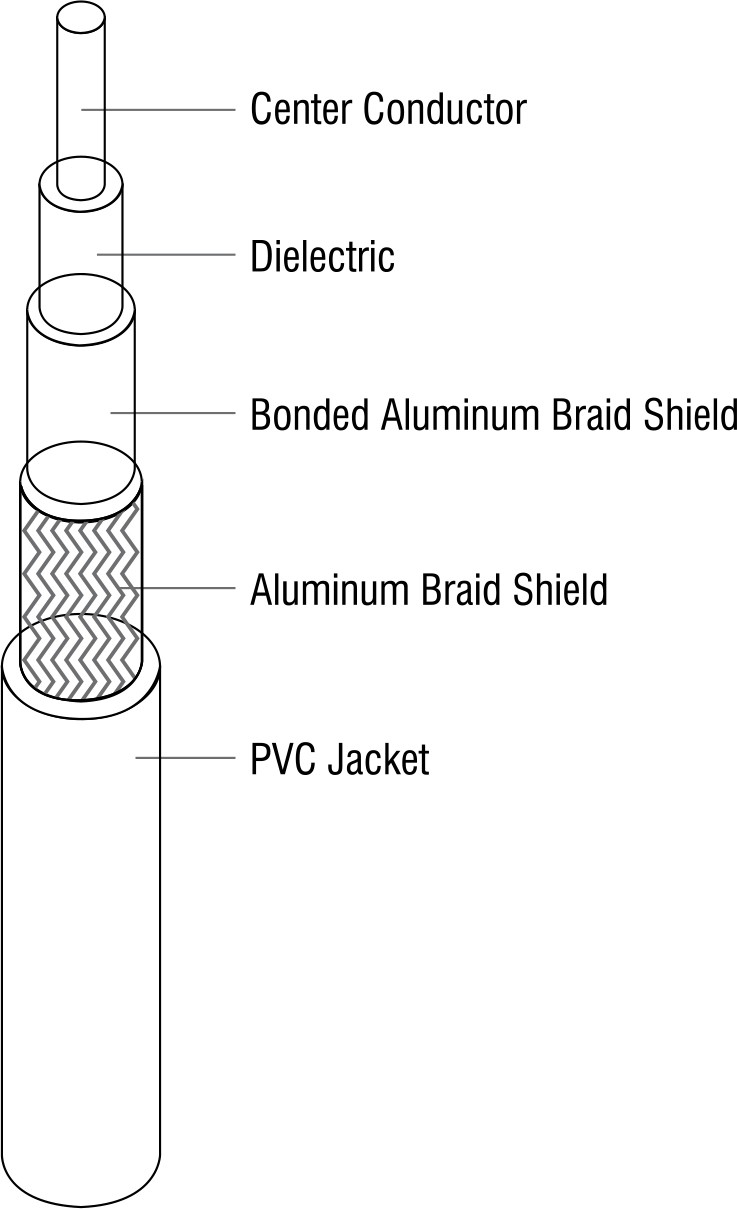

18AWG Copper Clad Steel
Nominal Diameter 0.040” (1.02mm)
Dielectric :
Gas Expanded Polyethylene
Nominal Diameter Over Dielectric : 0.180” (4.57mm)
Shield :
1st Shield : Aluminium-Polyprorylene-Aluminium
Laminated Tape with Overlap Bonded to the Dielectric
Nominal Diameter Over Tape : 0.186” (4.72mm)
2nd Shield : 34AWG Aluminium Braid Wire 90% Coverage
Jacket :
Flame Retardant PVC Jacket
Nominal Diameter Over Jacket : 0.272” (6.91mm)
Nominal Jacket Thickness : 0.030” (0.76mm)
Electrical Properties :
Impedance : 75.0 ±3.0 0hms
Velocity of Propagation :85% Norminal
Capacitance Conductor to Shield :16.2 pF/ft (53.1 pF/m) Nominal
Attenuation :
68 oF (20 oC )
| TRANSMISSION PERFORMANCE |
| Frequency MHz | dB/100 ft. (MAX) | dB/100meters (MAX) |
| 5MHZ | 0.50dB | 1.60dB |
| 10MHz | 0.66dB | 2.16dB |
| 55MHz | 1.40dB | 4.60dB |
| 100MHz | 1.92dB | 6.30dB |
| 211MHz | 2.60dB | 8.50dB |
| 500MHz | 4.10dB | 13.50dB |
| 750MHz | 5.10dB | 16.70dB |
| 862MHz | 5.50dB | 18.00dB |
| 1000MHz | 6.00dB | 19.70dB |
| 1200MHz | 6.73dB | 22.07dB |
| 1450MHz | 7.90dB | 25.90dB |
| 1800MHz | 8.40dB | 27.60dB |
| 2250MHz | 10.1dB | 33.10dB |
| 2800MHz | 10.9dB | 35.76dB |
| 3000MHz | 11.28dB | 37.01dB |
| Part Number | Product Description |
|---|---|
| 8000 4012 | IMATEK RG6, 3GHz, 90% Braided, CCS Grade, Coaxial Cable, 305m |
| 8000 4013 | IMATEK RG6, 3GHz, 90% Braided, CCS Grade, Coaxial Cable, 500m |
| 8000 4014 | IMATEK RG6, 3GHz, 97% Braided, CCS Grade, Coaxial Cable, 305m |
| 8000 4015 | IMATEK RG6, 3GHz, 97% Braided, CCS Grade, Coaxial Cable, 500m |
| 8000 4016 | IMATEK RG6, 3GHz, 97% Braided, Bare Copper, Coaxial Cable, 305m |
| 8000 4017 | IMATEK RG6, 3GHz, 97% Braided, Bare Copper, Coaxial Cable, 500m |

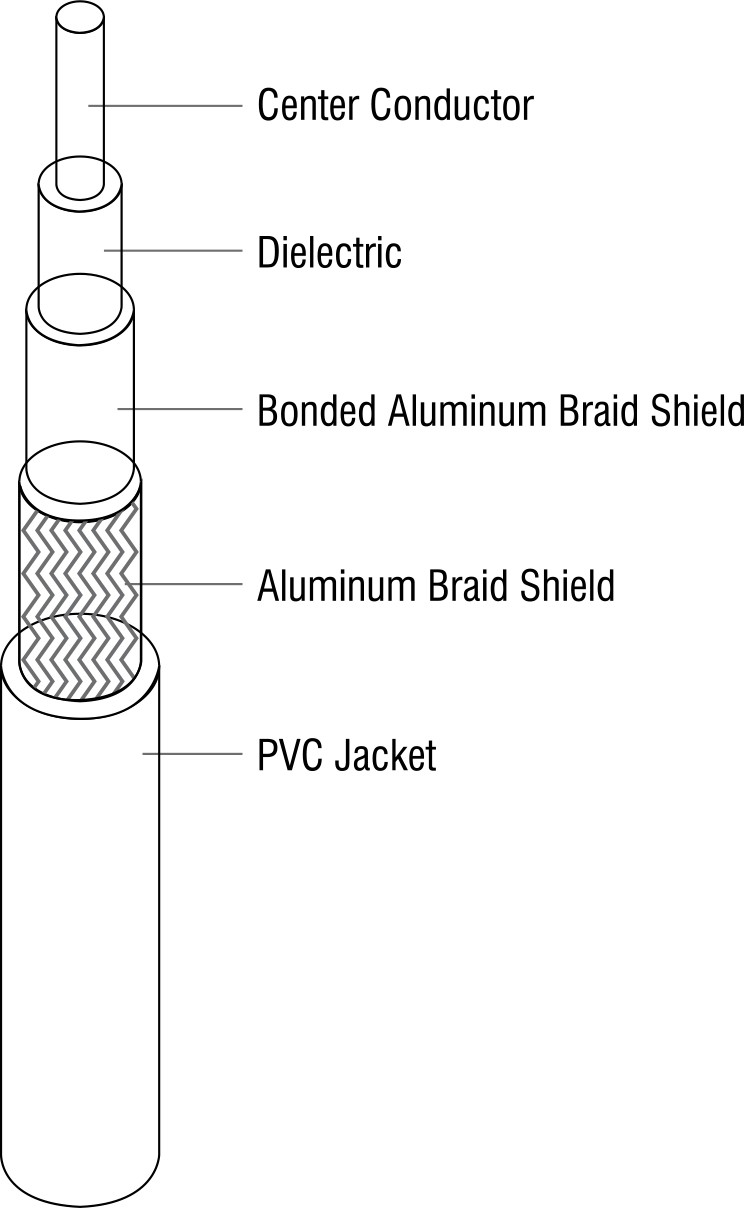

14AWG Copper Clad Steel
Nominal Diameter 0.064” (1.63mm)
Dielectric :
Gas Expanded Polyethylene
Nominal Diameter Over Dielectric : 0.280” (7.11mm)
Shield :
1st Shield : Aluminium-Polyprorylene-Aluminium
Laminated Tape with Overlap Bonded to the Dielectric
Nominal Diameter Over Tape : 0.287” (7.29mm)
2nd Shield : 34AWG Aluminium Braid Wire 90% Coverage
Jacket :
PVC Jacket
Nominal Diameter Over Jacket : 0.395” (10.03mm)
Nominal Jacket Thickness : 0.042” (1.07mm)
Electrical Properties :
Impedance : 75.0 ±3.0 0hms
Velocity of Propagation :85% Norminal
Capacitance Conductor to Shield :16.2 pF/ft (53.1 pF/m) Nominal
Attenuation :
68 oF (20 oC )
| TRANSMISSION PERFORMANCE |
| Frequency MHz | dB/100 ft. (MAX) | dB/100meters (MAX) |
| 5MHZ | 0.38dB | 1.25dB |
| 55MHz | 0.96dB | 3.15dB |
| 100MHz | 1.30dB | 4.27dB |
| 211MHz | 1.90dB | 6.23dB |
| 500MHz | 2.90dB | 9.51dB |
| 750MHz | 3.65dB | 11.97dB |
| 862MHz | 3.98dB | 13.05dB |
| 1000MHz | 4.35dB | 14.27dB |
| 1200MHz | 4.77dB | 15.65dB |
| 1450MHz | 5.30dB | 17.39dB |
| 1800MHz | 6.00dB | 19.69dB |
| 2250MHz | 6.75dB | 22.14dB |
| 2800MHz | 7.78dB | 25.53dB |
| 3000MHz | 8.11dB | 26.60dB |
| Part Number | Product Description |
|---|---|
| 8000 4018 | IMATEK RG11, 3GHz, 90% Braided, CCS Grade, Coaxial Cable, 305m |
| 8000 4019 | IMATEK RG11, 3GHz, 90% Braided, CCS Grade, Coaxial Cable, 500m |
| 8000 4020 | IMATEK RG11, 3GHz, 97% Braided, CCS Grade, Coaxial Cable, 305m |
| 8000 4021 | IMATEK RG11, 3GHz, 97% Braided, CCS Grade, Coaxial Cable, 500m |
| 8000 4022 | IMATEK RG11, 3GHz, 97% Braided, Bare Copper, Coaxial Cable, 305m |
| 8000 4023 | IMATEK RG11, 3GHz, 97% Braided, Bare Copper, Coaxial Cable, 500m |

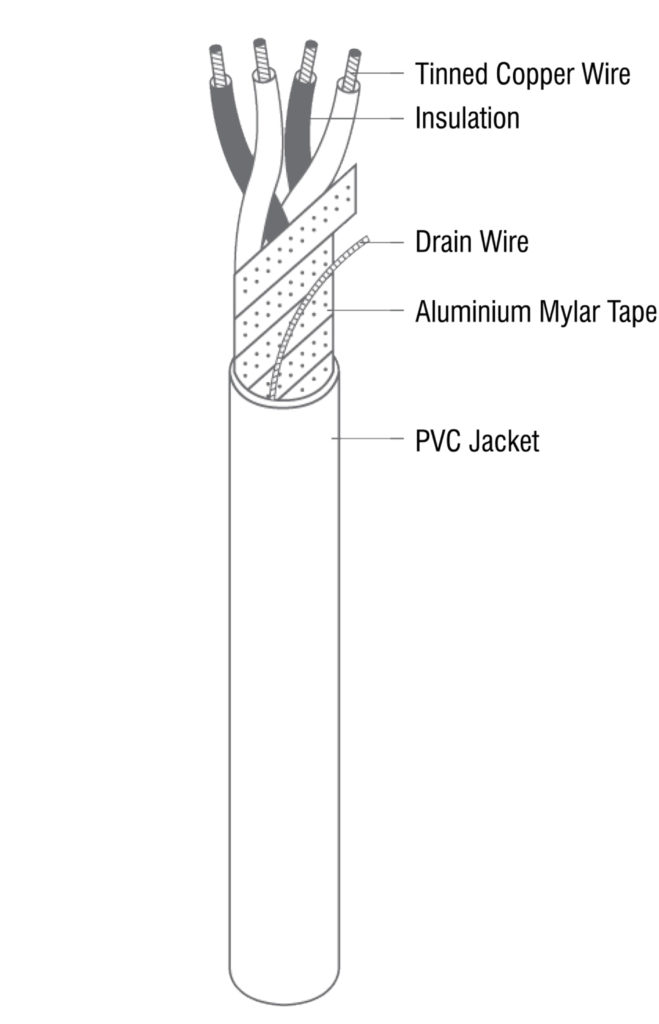

24AWG x 2 Pairs (710.20mm)
Tinned Copper Wire
PVC Jacket :
Jacket Thickness : 0.80mm
Overall Diameter : 6.50mm
Voltage Rate : 30V
Temperature Rate : 75ºC
Insulation : PE
Insulation Thickness : 0.72mm
Insulation Diameter : 2.22mm
Insulation Colour : Orange + White, Blue + Light Blue
Construction :
2 Pairs Twisted Together with Aluminium Mylar Tape,
Tinned Copper Wire 24AWG (7/0.20mm) Work as Drain Wire
Electrical Properties :
Nom. Impedence : 100Ω
Nom. Velocity of Propagation : 78% Nominal
Nom. Capacity Between Conductors : 13 pF/ft (42.7 pF/m)
Nom. Capacitance Between One Conductor and other Conductors
Connected to Shield : 22 pF/ft (72 pF/m)
| Part Number | Product Description |
|---|---|
| 8000 9201 | IMATEK RS422, 2 Pair 24AWG Screened Cable, 305m |
| 8000 9203 | IMATEK RS422, 4 Pair 24AWG Screened Cable, 305m |
| 8000 9207 | IMATEK RS422, 8 Pair 24AWG Screened Cable, 305m |

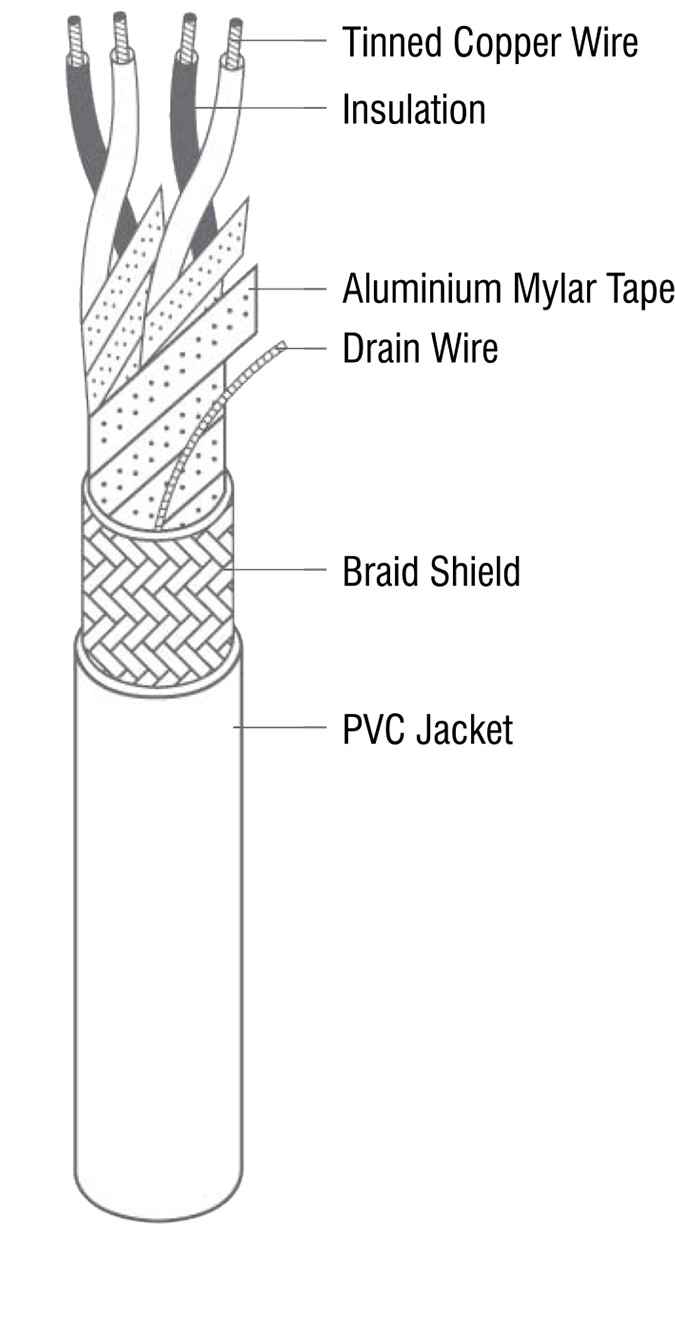

22AWG x 2 Pairs (7/0.26mm)
Tinned Copper Wire
PVC Jacket :
Jacket Thickness : 1.00mm
Overall Diameter : 10.32mm
Voltage Rate : 300V
Temperature Rate : 75 oC
Insulation : FOAM PE
Insulation Thickness : 0.72mm
Insulation Diameter : 2.22mm
Construction :
1 Pair Twisted Together with Aluminium Mylar Tape,
Drain Wire 20AWG (21/0.18mm) Tinned Copper Wire
Voltage Rate : 300V
Temperature Rate : 75 ºC
Low Capacitance as 12 pF/ft, Twisted Pairs with Shield
100 0hms ± 20% Impedance
| Part Number | Product Description |
|---|---|
| 8000 9101 | IMATEK RS485, 2 Pair 24AWG Screened Cable, 305m |
| 8000 9103 | IMATEK RS485, 4 Pair 24AWG Screened Cable, 305m |
| 8000 9107 | IMATEK RS485, 8 Pair 24AWG Screened Cable, 305m |

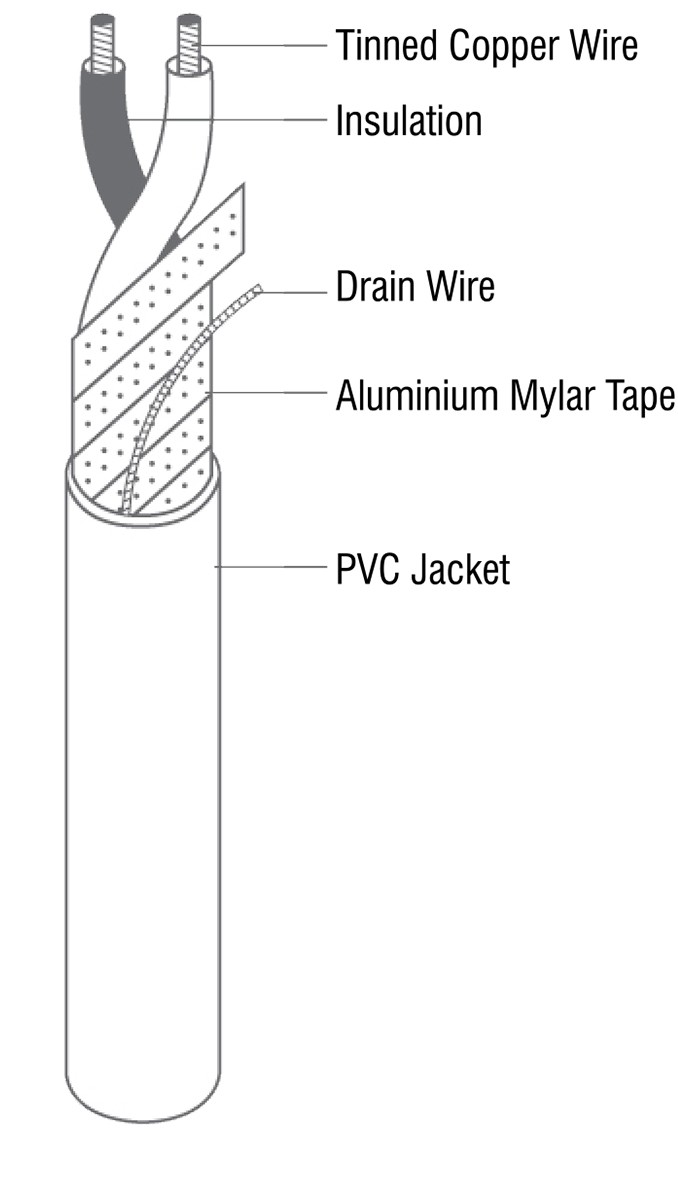

18AWG x 1 Pairs (16/0.26mm)
Tinned Copper Wire
PVC Jacket :
Jacket Thickness : 0.71mm
Overall Diameter : 5.72mm
Voltage Rate : 300V
Temperature Rate : 75 ºC
Insulation : PE
Insulation Thickness : 0.48mm
Insulation Diameter : 2.16mm
Insulation Colour : Black, Clear
Construction :
1 Pair Twisted Together with Aluminium Mylar Tape,
Drain Wire 20AWG (21/0.18mm) Tinned Copper Wire
Electrical Properties :
Nom. Capacity Between Conductors : 24 pF/ft (79 pF/m)
Nom. Capacitance Between One Conductor and other Conductors
Connected to Shield : 44 pF/ft (144 pF/m)
| Part Number | Product Description |
|---|---|
| 8000 9216 | IMATEK 1-Pair 18AWG Twisted Screened Audio & Instrucmentation Cable, 305m |
| 8000 9217 | IMATEK 2-Pair 18AWG Twisted Screened Audio & Instrucmentation Cable, 305m |
| 8000 9218 | IMATEK 4-Pair 18AWG Twisted Screened Audio & Instrucmentation Cable, 305m |

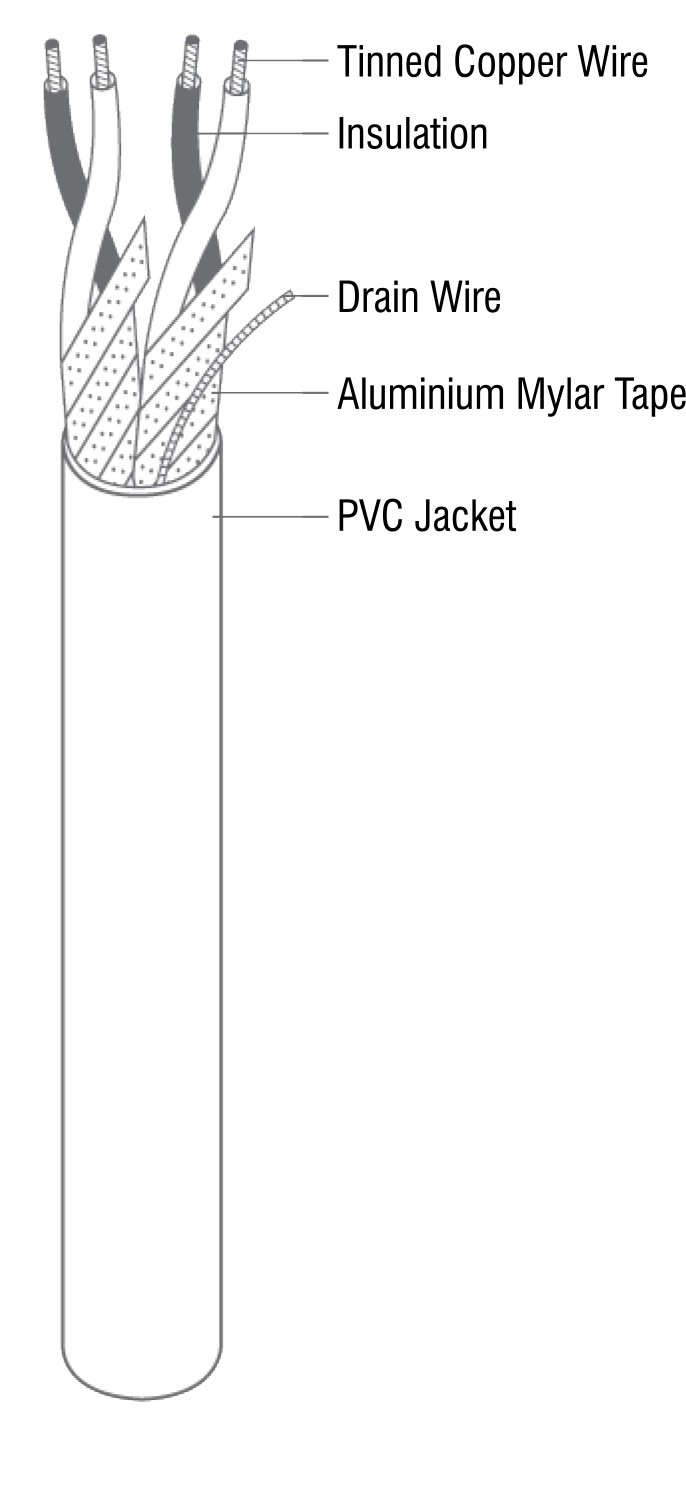

22AWG x 2 Pairs (7/0.26mm)
Tinned Copper Wire
PVC Jacket :
Jacket Thickness : 0.45mm
Overall Diameter : 4.00mm
Voltage Rate : 300V
Temperature Rate : 75 ºC
Insulation : PE
Insulation Thickness : 0.19mm
Insulation Diameter : 1.17mm
Insulation Colour : Red + Black, White + Green
Construction :
1 Pair Twisted Together with Aluminium Mylar Tape,
2 Pairs Twisted Together,
Drain Wire 24AWG (7/0.20mm) Tinned Copper Wire
Electrical Properties :
Nom. Impedence : 45Ω
Nom. Velocity of Propagation : 66% Nominal
Nom. Capacity Between Conductors : 35 pF/ft (115 pF/m)
Nom. Capacitance Between One Conductor and other Conductors
Connected to Shield : 62 pF/ft (203 pF/m)
| Part Number | Product Description |
|---|---|
| 8000 9219 | IMATEK 1-Pair 22AWG Twisted Screened Audio & Instrucmentation Cable, 305m |
| 8000 9220 | IMATEK 2-Pair 22AWG Twisted Screened Audio & Instrucmentation Cable, 305m |
| 8000 9221 | IMATEK 4-Pair 22AWG Twisted Screened Audio & Instrucmentation Cable, 305m |
