Optical Fibre Accessories
The Imatek fixed patch panel system is the basic form supplied with the panels unloaded ready for you to install the adapter of your choice. The panel can also be pre-loaded complete with the required adapter and simple splice management kit, or pre-loaded with pigtails to meet your project needs.
| TECHNICAL SPECIFICATIONS |
| Finished: | Powder Coated |
| Accommodation: | 6/12/24 Ports |
| Dimensions Width: | 19” - 483mm x Depth: 8” - 200mm x Height: 1u - 44mm |
| Weight: | 3.9kg |
| Colour: | Black |
| Part Number | Product Description |
|---|---|
| 8200 0001 | IMATEK 6 Port Duplex SC 19’ Rack-Mount Fibre Panel |
| 8200 0002 | IMATEK 12 Port Duplex SC 19’ Rack-Mount Fibre Panel |
| 8200 0003 | IMATEK 12 Port ST 19’ Rack-Mount Fibre Panel |
| 8200 0004 | IMATEK 24 Port ST 19’ Rack-Mount Fibre Panel |
| 8200 0005 | IMATEK 12 Port LC 19’ Rack-Mount Fibre Panel |
| 8200 0006 | IMATEK 24 Port LC 19’ Rack-Mount Fibre Panel |
| 8200 0007 | IMATEK 12 Port FC 19’ Rack-Mount Fibre Panel |
| 8200 0008 | IMATEK 24 Port FC 19’ Rack-Mount Fibre Panel |
| 8200 0009 | IMATEK 3 Port SC Duplex Wall-Mount Fibre Panel |
| 8200 0010 | IMATEK 6 Port SC Duplex Wall-Mount Fibre Panel |
| 8200 0011 | IMATEK 12 Port SC Duplex Wall-Mount Fibre Panel |
| 8200 0012 | IMATEK 6 Port ST Wall-Mount Fibre Panel |
| 8200 0013 | IMATEK 12 Port ST Wall-Mount Fibre Panel |
| 8200 0014 | IMATEK 24 Port ST Wall-Mount Fibre Panel |

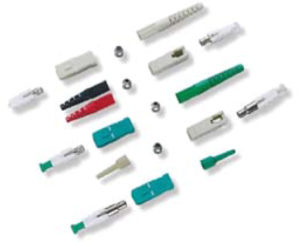

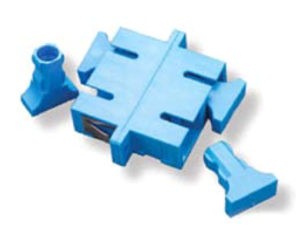

The SC connector and adapter are the most used set for modern day optical fiber systems. With the perceptible click locking mechanism and pull proof design this connector provides a secure interconnect.
| TECHNICAL SPECIFICATIONS |
Single-Mod
| Max. Insertion Loss | 0.35dB |
| Typical Insertion Loss | 0.3dB |
| Return Loss | |
| PC RL | ≥50dB, |
| APC RL | ≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity: | 45%--70% |
Multi-Mode
| Max. Insertion Loss | 0.2dB |
| Typical Insertion Loss | 0.2dB |
| Return Loss | |
| PC RL | ≥50dB |
| RL | ≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity: | 45%--70% |
| Part Number | Product Description |
|---|---|
| 8180 0001 | IMATEK SC-SC Adapter, Duplex, SM |
| 8180 0002 | IMATEK SC-SC Adapter, Duplex, MM |

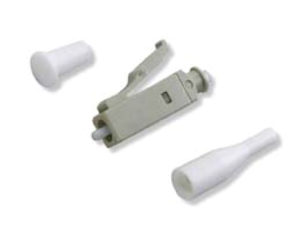

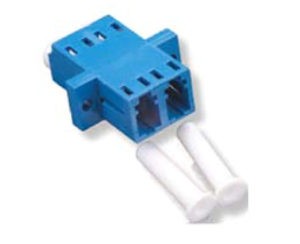

The LC connector and adapter set the standard for small optical fiber interconnects. Designed for simple use with latched lever locking mechanism preventing accidental disconnection. Imatek LC connector provides precision housing for optimum performance.
| TECHNICAL SPECIFICATIONS |
Single-Mode
| Max. Insertion Loss | 0.35dB |
| Typical Insertion Loss | 0.3dB |
| Return Loss | |
| PC RL | ≥50dB, |
| APC RL | ≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity: | 45%--70% |
Multi-Mode
| Max. Insertion Loss | 0.2dB |
| Typical Insertion Loss | 0.2dB |
| Return Loss | |
| PC RL | ≥50dB |
| RL | ≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity: | 45%--70% |
| Part Number | Product Description |
|---|---|
| 8180 0003 | IMATEK LC-LC Adapter, Duplex, SM |
| 8180 0004 | IMATEK LC-LC Adapter, Duplex, MM |

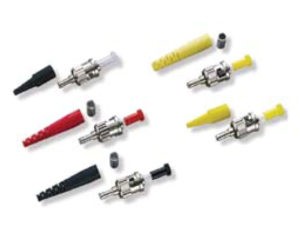

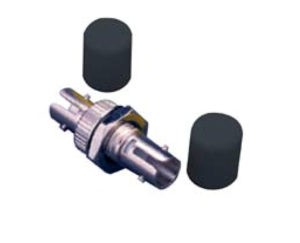

The ST connector and adapter set the standard for optical fiber interconnects. With its simple to use bayonet locking mechanism preventing accidental disconnection.
| TECHNICAL SPECIFICATIONS |
| Max. Insertion Loss | 0.35dB |
| Typical Insertion Loss | 0.3dB |
| Return Loss | |
| PC RL | ≥50dB, |
| APC RL | ≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity: | 45%--70% |
| Max. Insertion Loss | 0.2dB |
| Typical Insertion Loss | 0.2dB |
| Return Loss | |
| PC RL | ≥50dB, For |
| RL | ≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity: | 45%--70% |
| Part Number | Product Description |
|---|---|
| 8180 0005 | IMATEK ST-ST Adapter, Duplex, SM |
| 8180 0006 | IMATEK ST-ST Adapter, Duplex, MM |

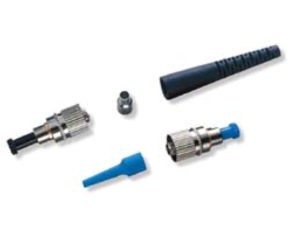

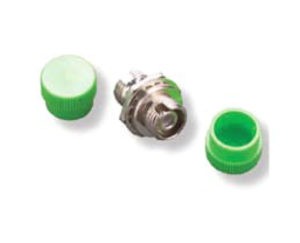

The FC connector and adapter set are mainly used for singlemode applications were precision is required. With its simple to use locking thread mechanism preventing accidental disconnection, this provides a very secure connection.
| TECHNICAL SPECIFICATIONS |
| Max. Insertion Loss | 0.5dB |
| Typical Insertion Loss | 0.5dB |
| Return Loss RL | ≥30dB |
| Mating Durability | ≤500 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity: | 45%--70% |
| Part Number | Product Description |
|---|---|
| 8180 0007 | IMATEK FC-FC Adapter, Duplex, SM |
| 8180 0008 | IMATEK FC-FC Adapter, Duplex, MM |

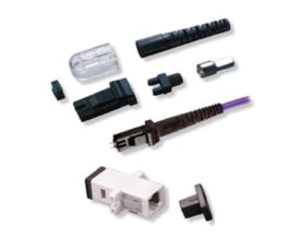

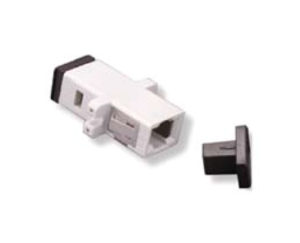

The MTRJ connector and adapter use a different alignment mechanism to the traditional ceramic ferule connectors. The alignment is performed through guide pins which are attached to the optical fiber connector. The MTRJ adapter is used to hold the guide pins in place and offer coarse alignment. The adapter offers a secure connection to hold the connectors in place to prevent accidental disconnection.
| TECHNICAL SPECIFICATIONS |
| Max. Insertion Loss | 0.5dB |
| Typical Insertion Loss | 0.5dB |
| Return Loss RL | ≥30dB |
| Mating Durability | ≤500 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Typical Insertion Loss | 0.5dB |
| Return Loss | ≥20dB |
| Mating Durability | ≤500 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Part Number | Product Description |
|---|---|
| 8180 0009 | IMATEK MTRJ-MTRJ Adapter, Duplex, SM |
| 8180 0010 | IMATEK MTRJ-MTRJ Adapter, Duplex, MM |
The Imatek SC optical fiber connector is comprised of a polymer body and a ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for, 900μm and 3mm cables. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule and precision polymer housing provides consistent long-term mechanical and optical performance.
| TECHNICAL SPECIFICATIONS |
| Max. Insertion Loss | 0.35dB |
| Typical Insertion Loss | 0.2dB |
| Return Loss | |
| PC RL | ≥50dB, |
| APC RL | ≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Max. Insertion Loss | 0.2dB |
| Typical Insertion Loss | 0.2dB |
| Return Loss | |
| LC/PC RL | ≥≥50dB, |
| LC/APC RL | ≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Part Number | Product Description |
|---|---|
| 8170 0001 | IMATEK SC Connector, Simplex, 9/125μm, SM, 900μm |
| 8170 0002 | IMATEK SC Connector, Simplex, 9/125μm, SM, 3.0mm |
| 8170 0003 | IMATEK SC Connector, Simplex, MM, 900μm |
| 8170 0004 | IMATEK SC Connector, Simplex, MM, 3.0mm |
| TECHNICAL SPECIFICATIONS |
| Max. Insertion Loss | 0.35dB |
| Typical Insertion Loss | 0.25dB |
| Return Loss for PC RL | ≥50dB, For APC RL≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Max. Insertion Loss | 0.2dB |
| Typical Insertion Loss | 0.2dB |
| Return Loss for PC RL | ≥50dB, For APC RL≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Part Number | Product Description |
|---|---|
| 8170 0005 | IMATEK ST Connector, Simplex, 9/125μm, SM, 900μm |
| 8170 0006 | IMATEK ST Connector, Simplex, 9/125μm, SM, 3.0mm |
| 8170 0007 | IMATEK ST Connector, Simplex, MM, 900μm |
| 8170 0008 | IMATEK ST Connector, Simplex, MM, 3.0mm |
The LC connector uses a high performance 1.25 mm ferule givesthe connector extremely high performance characteristics. Imatek LC connector comprises of a polymer body and a ceramic ferrule/spring/ crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for 900μm and 3.0 mm cables. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule and precision polymer housing provides consistent long-term mechanical and optical performance.
| TECHNICAL SPECIFICATIONS |
| Max. Insertion Loss | 0.35dB |
| Typical Insertion Loss | 0.3dB |
| Return Loss | |
| PC | ≥50dB, |
| APC | ≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Max. Insertion Loss | 0.2dB |
| Typical Insertion Loss | 0.2dB |
| Return Loss | |
| PC | ≥50dB, |
| APC RL | ≥60dB |
| Mating Durability | ≤1000 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Part Number | Product Description |
|---|---|
| 8170 0009 | IMATEK LC Connector, Simplex, 9/125μm, SM, 900μm |
| 8170 0010 | IMATEK LC Connector, Simplex, 9/125μm, SM, 3.0mm |
| 8170 0011 | IMATEK LC Connector, Simplex, MM, 900μm |
| 8170 0012 | IMATEK LC Connector, Simplex, MM, 3.0mm |
The Imatek FC connector comprises of a nickel plated brass body and a ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for 900μm and 3mm cables. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule and precision nickel plated brass housing provides consistent long-term mechanical and optical performance. The FC connector is used extensively in the telecommunications market, where long singlemode optical fiber cables can run upwards of 50km. In these extreme situations the connector needs to have extremely low loss and accurate geometry.
| TECHNICAL SPECIFICATIONS |
| Typical Insertion Loss | 0.5dB |
| Return Loss RL | ≥30dB |
| Mating Durability | ≤500 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Part Number | Product Description |
|---|---|
| 8170 0013 | IMATEK FC Connector, Simplex, 9/125μm, SM, 900μm |
| 8170 0014 | IMATEK FC Connector, Simplex, 9/125μm, SM, 3.0mm |
| 8170 0015 | IMATEK FC Connector, Simplex, MM, 900μm |
| 8170 0016 | IMATEK FC Connector, Simplex, MM, 3.0mm |
The Imatek the MT-RJ, is capable of terminating any 125mm fiber. The flexibility of the connector allows it to be used in short run local area networks as well as longer haul cabling using single mode fiber. The MT-RJ connector is a development of the now legendary MT ferrule. This amazing technology is at the heart of many state of the art connectors. The MT ferrule in its various designs has the ability to connect anything from two fibers in the MT-RJ or up to 72 fibers in the latest versions of the MPO connector. Designed to terminate two fibers within a single connector, reducing the risk of operator error when interconnecting equipment and distribution panels. The MT-RJ has been deliberately designed to look and feel like the industry standard copper connector. The high density MT-RJ connector allows the termination of high fiber count backbone cables to be terminated in smaller distribution panels.
| TECHNICAL SPECIFICATIONS |
| Max. Insertion Loss | 0.5dB |
| Typical Insertion Loss | 0.5dB |
| Return Loss RL | ≥30dB |
| Mating Durability | ≤500 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Max. Insertion Loss | 0.5dB |
| Typical Insertion Loss | 0.5dB |
| Return Loss | ≥20dB |
| Mating Durability | ≤500 cycles |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity : | 45%--70% |
| Part Number | Product Description |
|---|---|
| 8170 0017 | IMATEK MTRJ Connector, Simplex, 9/125μm, SM, 900μm |
| 8170 0018 | IMATEK MTRJ Connector, Simplex, 9/125μm, SM, 3.0mm |
| 8170 0019 | IMATEK MTRJ Connector, Simplex, MM, 900μm |
| 8170 0020 | IMATEK MTRJ Connector, Simplex, MM, 3.0mm |
