Optical Fibre Patch Cord

PHYSICAL SPECIFICATIONS
Coated Fibre Diameter 245μm
Cable outside Diameter 3.0mm
Simplex 3.0±0.2mm
Duplex Max 6.4±0.2mm for 3.0mm type
Min. Bend Radius 10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm >200MHz
@1300nm >600MHz
Average Connection Loss ≤0.1dB
Return Loss Minimum 40dB
Cable outside Diameter 3.0mm
MECHANICAL CHARACTERISTICS
Connector
Ferrule Materials Zirconia
Housing Body ABS
Cable / Boot
Flammability Flame resistant
Glass Core/Cladding Diameter 9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter 125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range -25°C to +70°C
Storage Temperature Range 45%--70%
PERFORMANCE
Mean Insertion Loss 0.3dB
Maximum Insertion Loss 0.35dB
Connector Durability >500 cycles
Part Number Product Description

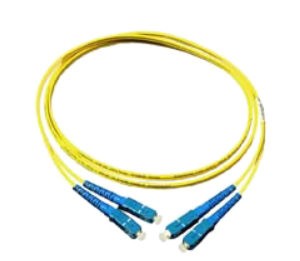

8001 6001 IMATEK SC-SC 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6002 IMATEK SC-SC 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6003 IMATEK SC-SC 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6004 IMATEK SC-SC 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6005 IMATEK SC-SC 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6006 IMATEK SC-SC 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6007 IMATEK SC-SC 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6008 IMATEK SC-SC 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6009 IMATEK SC-SC 62.5/125μm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter245μm
Cable outside Diameter3.0mm
Min. Bend Radius10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm>200MHz
@1300nm>600MHz
Average Connection Loss≤0.1dB
Return Loss Minimum40dB
Cable outside Diameter3.0mm
MECHANICAL CHARACTERISTICS
Connector ST LC
Ferrule MaterialsZirconia
Housing BodyABS
Cable
FlammabilityFlame resistant
Glass Core/Cladding Diameter9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range-25°C to +70°C
Storage Temperature Range45%--70%
PERFORMANCE
Connector SC
Mean Insertion Loss0.3dB
Maximum Insertion Loss0.35dB
Connector Durability>500 cycles

Connector LC
Mean Insertion Loss0.3dB
Maximum Insertion Loss0.35dB
Connector Durability>500 cycles
Part NumberProduct Description

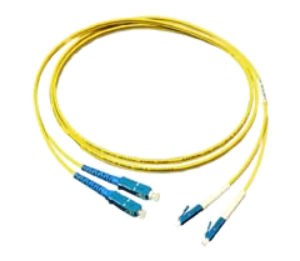

8001 6010IMATEK LC-SC 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6011IMATEK LC-SC 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6012IMATEK LC-SC 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6013IMATEK LC-SC 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6014IMATEK LC-SC 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6015IMATEK LC-SC 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6016IMATEK LC-SC 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6017IMATEK LC-SC 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6018IMATEK LC-SC 62.5/125μm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter 245μm
Cable outside Diameter 3.0mm
Min. Bend Radius 10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm >200MHz
@1300nm >600MHz
Average Connection Loss ≤0.1dB
Return Loss Minimum 40dB
Cable outside Diameter 3.0mm
MECHANICAL CHARACTERISTICS
Connector ST LC
Ferrule Materials Zirconia
Housing Body ABS
Cable
Flammability Flame resistant
Glass Core/Cladding Diameter 9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter 125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range -25°C to +70°C
Storage Temperature Range 45%--70%
PERFORMANCE
Connector SC
Mean Insertion Loss 0.3dB
Maximum Insertion Loss 0.35dB
Connector Durability >500 cycles

Connector ST
Mean Insertion Loss 0.3dB
Maximum Insertion Loss 0.35dB
Connector Durability >500 cycles
Part Number Product Description

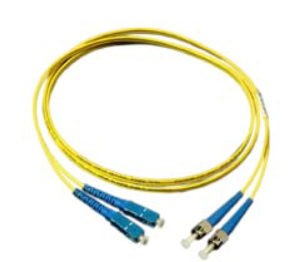

8001 6019 IMATEK SC-ST 9/125µm SM Duplex Fibre Patch Cord 3.0m
8001 6020 IMATEK SC-ST 9/125µm SM Duplex Fibre Patch Cord 5.0m
8001 6021 IMATEK SC-ST 9/125µm SM Duplex Fibre Patch Cord 10.0m
8001 6022 IMATEK SC-ST 50/125µm MM Duplex Fibre Patch Cord 3.0m
8001 6023 IMATEK SC-ST 50/125µm MM Duplex Fibre Patch Cord 5.0m
8001 6024 IMATEK SC-ST 50/125µm MM Duplex Fibre Patch Cord 10.0m
8001 6025 IMATEK SC-ST 62.5/125µm MM Duplex Fibre Patch Cord 3.0m
8001 6026 IMATEK SC-ST 62.5/125µm MM Duplex Fibre Patch Cord 5.0m
8001 6027 IMATEK SC-ST 62.5/125µm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter 245μm
Cable outside Diameter 3.0mm
Simplex 3.0±0.2mm
Duplex Max 6.4±0.2mm for 3.0mm type
Min. Bend Radius 10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm >200MHz
@1300nm >600MHz
Average Connection Loss ≤0.1dB
Return Loss Minimum 40dB
Cable outside Diameter 3.0mm
MECHANICAL CHARACTERISTICS
Connector
Ferrule Materials Zirconia
Housing Body ABS
Cable
Flammability Flame resistant
Glass Core/Cladding Diameter 9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter 125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range -25°C to +70°C
Storage Temperature Range 45%--70%
PERFORMANCE
Connector
Mean Insertion Loss 0.3dB
Maximum Insertion Loss 0.35dB
Connector Durability >500 cycles
Part Number Product Description
8001 6028 IMATEK LC-LC 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6029 IMATEK LC-LC 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6030 IMATEK LC-LC 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6031 IMATEK LC-LC 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6032 IMATEK LC-LC 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6033 IMATEK LC-LC 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6034 IMATEK LC-LC 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6035 IMATEK LC-LC 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6036 IMATEK LC-LC 62.5/125μm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter 245μm
Cable outside Diameter 3.0mm
Min. Bend Radius 10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm >200MHz
@1300nm >600MHz
Average Connection Loss ≤0.1dB
Return Loss Minimum 40dB
Cable outside Diameter 3.0mm
MECHANICAL CHARACTERISTICS
Connector ST LC
Ferrule Materials Zirconia
Housing Body ABS
Cable
Flammability Flame resistant
Glass Core/Cladding Diameter 9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter 125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range -25°C to +70°C
Storage Temperature Range 45%--70%
PERFORMANCE
Connector ST
Mean Insertion Loss 0.3dB
Maximum Insertion Loss 0.35dB
Connector Durability >500 cycles

Connector LC
Mean Insertion Loss 0.3dB
Maximum Insertion Loss 0.35dB
Connector Durability >500 cycles
Part Number Product Description

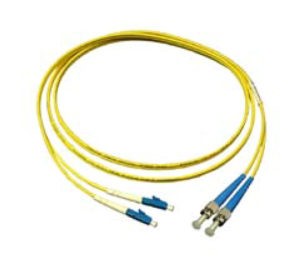

8001 6037 IMATEK LC-ST 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6038 IMATEK LC-ST 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6039 IMATEK LC-ST 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6040 IMATEK LC-ST 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6041 IMATEK LC-ST 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6042 IMATEK LC-ST 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6043 IMATEK LC-ST 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6044 IMATEK LC-ST 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6045 IMATEK LC-ST 62.5/125μm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter 245μm
Cable outside Diameter 3.0mm
Simplex 3.0±0.2mm
Duplex Max 6.4±0.2mm for 3.0mm type
Min. Bend Radius 10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm >200MHz
@1300nm >600MHz
Average Connection Loss ≤0.1dB
Return Loss Minimum 40dB
Cable outside Diameter 3.0mm
MECHANICAL CHARACTERISTICS
Connector
Ferrule Materials Zirconia
Housing Body ABS
Cable / Boot
Flammability Flame resistant
Glass Core/Cladding Diameter 9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter 125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range -25°C to +70°C
Storage Temperature Range 45%--70%
PERFORMANCE
Connector
Mean Insertion Loss 0.3dB
Maximum Insertion Loss 0.35dB
Connector Durability >500 cycles
Part Number Product Description

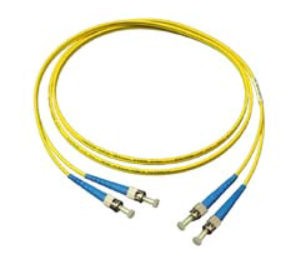

8001 6046 IMATEK ST-ST 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6047 IMATEK ST-ST 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6048 IMATEK ST-ST 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6049 IMATEK ST-ST 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6050 IMATEK ST-ST 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6051 IMATEK ST-ST 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6052 IMATEK ST-ST 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6053 IMATEK ST-ST 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6054 IMATEK ST-ST 62.5/125μm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter 245μm
Cable outside Diameter 3.0mm
Min. Bend Radius 10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm >200MHz
@1300nm >600MHz
Average Connection Loss ≤0.1dB
Return Loss Minimum 40dB
Cable outside Diameter 3.0mm
MECHANICAL CHARACTERISTICS
Connector ST LC
Ferrule Materials Zirconia
Housing Body ABS
Cable
Flammability Flame resistant
Glass Core/Cladding Diameter 9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter 125μm
ENVIRONMENTAL
Operating Temperature Range -25°C to +70°C
Storage Temperature Range 45%--70%
PERFORMANCE
Connector ST
Mean Insertion Loss 0.3dB
Maximum Insertion Loss 0.35dB
Connector Durability >500 cycles

Connector MT-RJ
Mean Insertion Loss 0.5dB
Maximum Insertion Loss 0.5dB
Connector Durability >500 cycles
Part Number Product Description

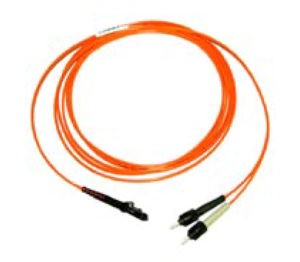

8001 6055 IMATEK ST-MTRJ 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6056 IMATEK ST-MTRJ 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6057 IMATEK ST-MTRJ 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6058 IMATEK ST-MTRJ 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6059 IMATEK ST-MTRJ 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6060 IMATEK ST-MTRJ 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6061 IMATEK ST-MTRJ 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6062 IMATEK ST-MTRJ 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6063 IMATEK ST-MTRJ 62.5/125μm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter 245μm
Cable outside Diameter 3.0mm
Min. Bend Radius 10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm >200MHz
@1300nm >600MHz
Average Connection Loss ≤0.1dB
Return Loss Minimum 40dB
Cable outside Diameter 3.0mm
MECHANICAL CHARACTERISTICS
Connector ST LC
Ferrule Materials Zirconia
Housing Body ABS
Cable
Flammability Flame resistant
Glass Core/Cladding Diameter 9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter 125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range -25°C to +70°C
Storage Temperature Range 45%--70%
PERFORMANCE
Connector SC
Mean Insertion Loss 0.3dB
Maximum Insertion Loss 0.35dB
Connector Durability >500 cycles

Connector MT-RJ
Mean Insertion Loss 0.5dB
Maximum Insertion Loss 0.5dB
Connector Durability >500 cycles

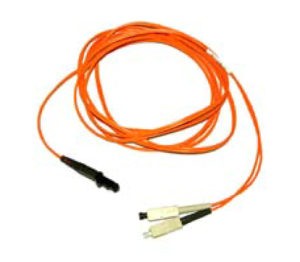

Part Number Product Description
8001 6064 IMATEK SC-MTRJ 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6065 IMATEK SC-MTRJ 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6066 IMATEK SC-MTRJ 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6067 IMATEK SC-MTRJ 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6068 IMATEK SC-MTRJ 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6069 IMATEK SC-MTRJ 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6070 IMATEK SC-MTRJ 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6071 IMATEK SC-MTRJ 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6072 IMATEK SC-MTRJ 62.5/125μm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter245μm
Cable outside Diameter3.0mm
Min. Bend Radius10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm>200MHz
@1300nm>600MHz
Average Connection Loss≤0.1dB
Return Loss Minimum40dB
Cable outside Diameter3.0mm
MECHANICAL CHARACTERISTICS
Connector MTRJ LC
Ferrule MaterialsZirconia
Housing BodyABS
Cable
FlammabilityFlame resistant
Glass Core/Cladding Diameter9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range-25°C to +70°C
Storage Temperature Range45%--70%
PERFORMANCE
Connector LC
Mean Insertion Loss0.3dB
Maximum Insertion Loss0.35dB
Connector Durability>500 cycles

Connector MT-RJ
Mean Insertion Loss0.5dB
Maximum Insertion Loss0.5dB
Connector Durability>500 cycles

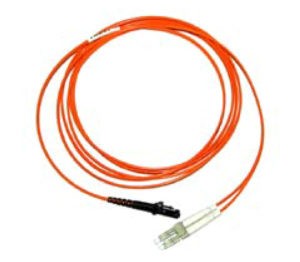

Part NumberProduct Description
8001 6073IMATEK LC-MTRJ 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6074IMATEK LC-MTRJ 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6075IMATEK LC-MTRJ 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6076IMATEK LC-MTRJ 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6077IMATEK LC-MTRJ 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6078IMATEK LC-MTRJ 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6079IMATEK LC-MTRJ 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6080IMATEK LC-MTRJ 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6081IMATEK LC-MTRJ 62.5/125μm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter245μm
Cable outside Diameter3.0mm
Min. Bend Radius10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm>200MHz
@1300nm>600MHz
Average Connection Loss≤0.1dB
Return Loss Minimum40dB
Cable outside Diameter3.0mm
MECHANICAL CHARACTERISTICS
Connector
Ferrule MaterialsZirconia
Housing BodyABS
Cable
FlammabilityFlame resistant
Glass Core/Cladding Diameter9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range-25°C to +70°C
Storage Temperature Range45%--70%
PERFORMANCE
Connector ST
Mean Insertion Loss0.3dB
Maximum Insertion Loss0.35dB
Connector Durability>500 cycles

Connector LC
Mean Insertion Loss0.3dB
Maximum Insertion Loss0.35dB
Connector Durability>500 cycles

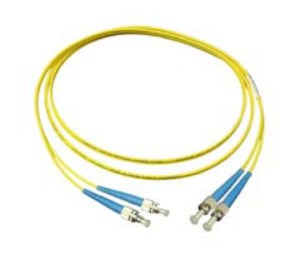

Part NumberProduct Description
8001 6082IMATEK ST-FC 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6083IMATEK ST-FC 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6084IMATEK ST-FC 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6085IMATEK ST-FC 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6086IMATEK ST-FC 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6087IMATEK ST-FC 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6088IMATEK ST-FC 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6089IMATEK ST-FC 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6090IMATEK ST-FC 62.5/125μm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter245μm
Cable outside Diameter3.0mm
Min. Bend Radius10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm>200MHz
@1300nm>600MHz
Average Connection Loss≤0.1dB
Return Loss Minimum40dB
Cable outside Diameter3.0mm
MECHANICAL CHARACTERISTICS
Connector
Ferrule MaterialsZirconia
Housing BodyABS
Cable
FlammabilityFlame resistant
Glass Core/Cladding Diameter9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range-25°C to +70°C
Storage Temperature Range45%--70%
PERFORMANCE
Connector ST
Mean Insertion Loss0.3dB
Maximum Insertion Loss0.35dB
Connector Durability>500 cycles

Connector LC
Mean Insertion Loss0.3dB
Maximum Insertion Loss0.35dB
Connector Durability>500 cycles

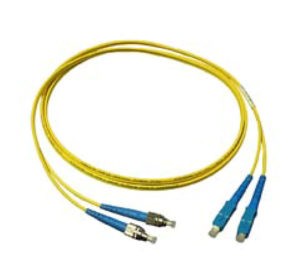

Part NumberProduct Description
8001 6091IMATEK SC-FC 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6092IMATEK SC-FC 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6093IMATEK SC-FC 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6094IMATEK SC-FC 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6095IMATEK SC-FC 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6096IMATEK SC-FC 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6097IMATEK SC-FC 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6098IMATEK SC-FC 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6099IMATEK SC-FC 62.5/125μm MM Duplex Fibre Patch Cord 10.0m
PHYSICAL SPECIFICATIONS
Coated Fibre Diameter245μm
Cable outside Diameter3.0mm
Min. Bend Radius10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Min. Bandwidth @850nm>200MHz
@1300nm>600MHz
Average Connection Loss≤0.1dB
Return Loss Minimum40dB
Cable outside Diameter3.0mm
MECHANICAL CHARACTERISTICS
Connector ST LC
Ferrule MaterialsZirconia
Housing BodyABS
Cable
FlammabilityFlame resistant
Glass Core/Cladding Diameter9/125μm, 50/125μm or 62.5/125μm
Polymer Coating Diameter125μm
Jacket Specification fit RoHs standard, material PVC or LSOH
ENVIRONMENTAL
Operating Temperature Range-25°C to +70°C
Storage Temperature Range45%--70%
PERFORMANCE
Connector FC
Mean Insertion Loss0.3dB
Maximum Insertion Loss0.35dB
Connector Durability>500 cycles

Connector LC
Mean Insertion Loss0.3dB
Maximum Insertion Loss0.35dB
Connector Durability>500 cycles

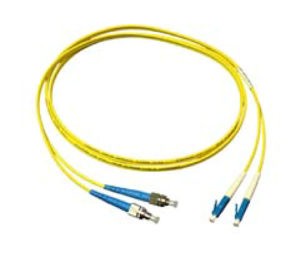

Part NumberProduct Description
8001 6100IMATEK LC-FC 9/125μm SM Duplex Fibre Patch Cord 3.0m
8001 6101IMATEK LC-FC 9/125μm SM Duplex Fibre Patch Cord 5.0m
8001 6102IMATEK LC-FC 9/125μm SM Duplex Fibre Patch Cord 10.0m
8001 6103IMATEK LC-FC 50/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6104IMATEK LC-FC 50/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6105IMATEK LC-FC 50/125μm MM Duplex Fibre Patch Cord 10.0m
8001 6106IMATEK LC-FC 62.5/125μm MM Duplex Fibre Patch Cord 3.0m
8001 6107IMATEK LC-FC C 62.5/125μm MM Duplex Fibre Patch Cord 5.0m
8001 6108IMATEK LC-FC 62.5/125μm MM Duplex Fibre Patch Cord 10.0m

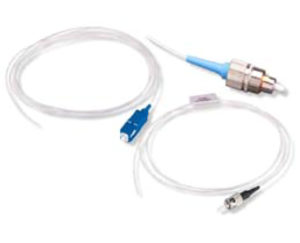

Optical fiber pigtails are essential when terminating cables within the splice enclosure. Purchasing pre polished assemblies takes the risk of poor connector termination away from the project. Cables terminated
within a production facility will give a higher performance than cables terminated on site.

Imatek optical fiber pigtails are the best available, offering ST, SC to today’s Small Form Factor connectors like the LC, or MT-RJ.

PHYSICAL SPECIFIATIONS
Coated Fibre Diameter245μm
Cable Outside Diameter3.0mm ~ 7.4mm
Min. Bend Radius 10D (D is cable outside diameter, in static)
OPTICAL SPECIFICATIONS
Multi-Mode
Min. Bandwidth @ 850nm>200MHz
@ 1300nm>600MHz
Attenuation @ 850nm<2.9dB/km
@ 1200nm<0.9dB/km
Single-Mode
Average Loss<0.3dB
Return Loss<0.3dB
Insertion Loss:Max. 0.3 dB
Return Loss:UPC>50dB, APC>60dB
Attenuation @1310nm>0.39
@ 1550nm>0.24

Optical Performance (Multimode)
Insertion loss:Max. 0.3 dB Typical 0.2 dB
Optical Performance (MT-RJ)
Insertion loss:Max. 0.5 dB
Operating Temperature:-25°C to +75°C
Part NumberProduct Description
8190 0001IMATEK, SC Fibre Pigtail, 9/125µm, SM,
1.0m
8190 0002IMATEK, SC Fibre Pigtail, 9/125µm, SM,
1.5m
8190 0003IMATEK, SC Fibre Pigtail, 50/125µm, MM, 1.0m
8190 0004IMATEK, SC Fibre Pigtail, 50/125µm, MM, 1.5m
8190 0005IMATEK, SC Fibre Pigtail, 62.5/125µm, MM, 1.0m
8190 0006IMATEK, SC Fibre Pigtail, 62.5/125µm, MM, 1.5m
8190 0007IMATEK, LC Fibre Pigtail, 9/125µm, SM,
1.0m
8190 0008IMATEK, LC Fibre Pigtail, 9/125µm, SM,
1.5m
8190 0009IMATEK, LC Fibre Pigtail, 50/125µm, MM, 1.0m
8190 0010IMATEK, LC Fibre Pigtail, 50/125µm, MM, 1.5m
8190 0011IMATEK, LC Fibre Pigtail, 62.5/125µm, MM, 1.0m
8190 0012IMATEK, LC Fibre Pigtail, 62.5/125µm, MM, 1.5m
8190 0013IMATEK, ST Fibre Pigtail, 9/125µm, SM,
1.0m
8190 0014IMATEK, ST Fibre Pigtail, 9/125µm, SM,
1.5m
8190 0015IMATEK, ST Fibre Pigtail, 50/125µm, MM, 1.0m
Part NumberProduct Description
8190 0016IMATEK, ST Fibre Pigtail, 50/125µm, MM, 1.5m
8190 0017IMATEK, ST Fibre Pigtail, 62.5/125µm, MM, 1.0m
8190 0018IMATEK, ST Fibre Pigtail, 62.5/125µm , MM, 1.5m
8190 0019IMATEK, FC Fibre Pigtail, 9/125µm, SM,
1.0m
8190 0020IMATEK, FC Fibre Pigtail, 9/125µm, SM,
1.5m
8190 0021IMATEK, FC Fibre Pigtail, 50/125µm, MM, 1.0m
8190 0022IMATEK, FC Fibre Pigtail, 50/125µm, MM, 1.5m
8190 0023IMATEK, FC Fibre Pigtail, 62.5/125µm, MM, 1.0m
8190 0024IMATEK, FC Fibre Pigtail, 62.5/125µm, MM, 1.5m
8190 0025IMATEK, MTRJ Fibre Pigtail, 9/125µm, SM, 1.0m
8190 0026IMATEK, MTRJ Fibre Pigtail, 9/125µm, SM, 1.5m
8190 0027IMATEK, MTRJ Fibre Pigtail, 50/125µm, MM, 1.0m
8190 0028IMATEK, MTRJ Fibre Pigtail, 50/125µm, MM, 1.5m
8190 0029IMATEK, MTRJ Fibre Pigtail, 62.5/125µm, MM, 1.0m
8190 0030IMATEK, MTRJ Fibre Pigtail, 62.5/125µm, MM, 1.5m
